RA1553112Z70
ActiveE-Switch
SWITCH ROCKER SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

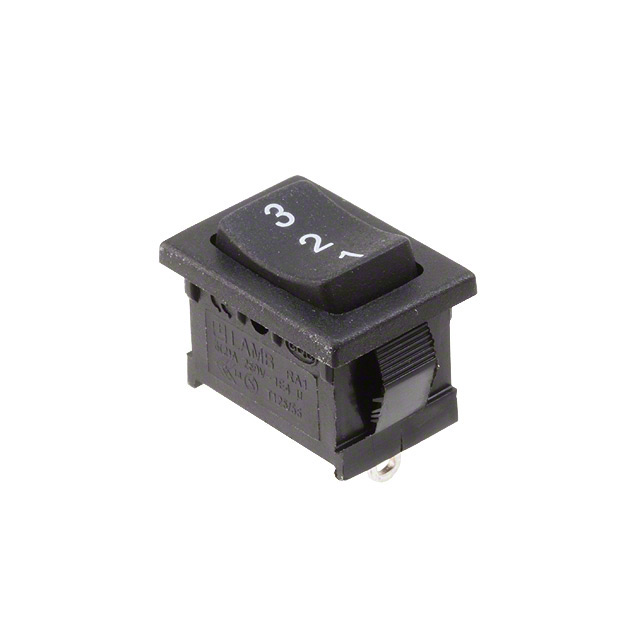

RA1553112Z70
ActiveE-Switch
SWITCH ROCKER SPDT 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RA1553112Z70 |
|---|---|
| Actuator Marking | 3 2 1, Vertical |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 19.4 mm |
| Panel Cutout Dimensions [y] | 13.1 mm |
| Switch Function | On-Off-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.86 | |
| 10 | $ 0.76 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.69 | |||
| 200 | $ 0.66 | |||
| 400 | $ 0.63 | |||
| 600 | $ 0.56 | |||
| 1000 | $ 0.53 | |||
Description
General part information
RA15531 Series
Rocker Switch SPDT 10A (AC) 125 V Panel Mount, Snap-In
