1079402

Active

Phoenix Contact

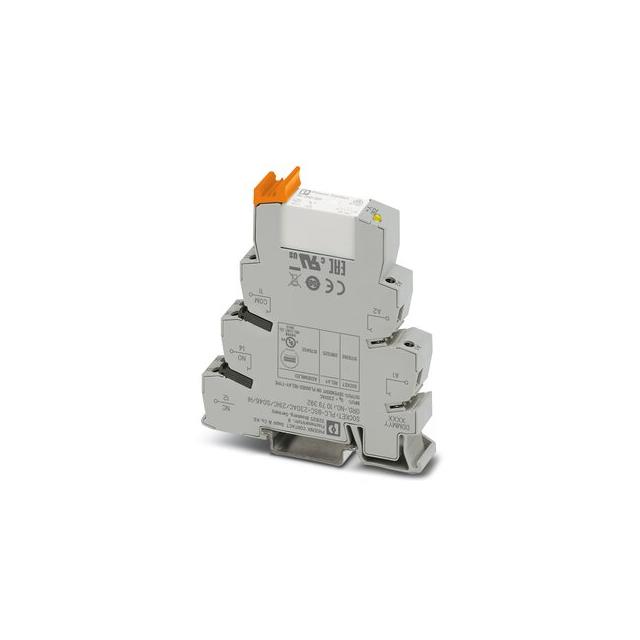

RELAY GEN PURPOSE SPDT 10A 230V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 10A 230V

Technical Specifications

Parameters and characteristics for this part

Specification	1079402

Approval Agency	UKCA, CE
Coil Current	16 mA
Coil Resistance	7.34 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	10 ms
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	8 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

RELAY GEN PURPOSE SPDT 10A 230V

Part	Coil Type	Contact Rating (Current)	Coil Current	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Termination Style	Features	Coil Resistance	Mounting Type	Switching Voltage	Release Time	Contact Material	Coil Voltage	Contact Form	Operate Time
Phoenix Contact 1079402	Non Latching	10 A	16 mA	General Purpose	-40 °C	50 °C	CE, UKCA	Screw Terminal	Lighted Indicator, Socket Included	7.34 kOhms	DIN Rail	250 VAC, 250 VDC	8 ms	Silver Nickel (AgNi)	230 VAC	SPDT (1 Form C)	10 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 70.82

General part information

General Purpose Relay SPDT (1 Form C) 230VAC Coil DIN Rail

Technical documentation and resources

No documents available
