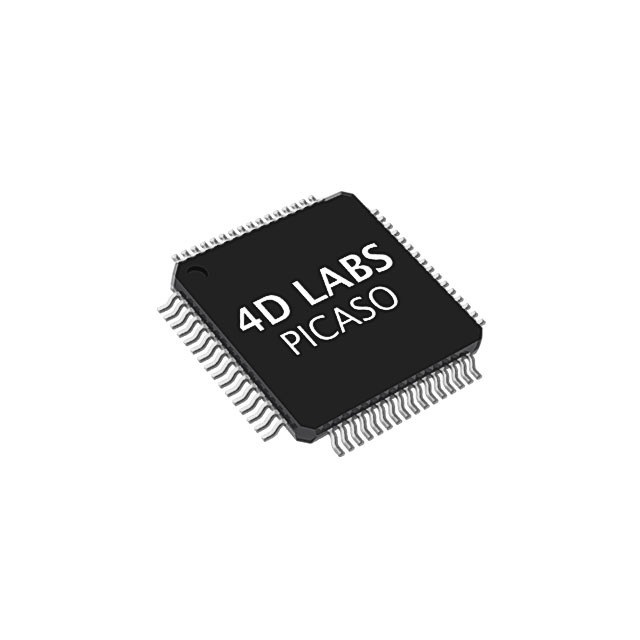

PICASO

Active

4D Systems Pty Ltd

EMBEDDED GRAPHICS CONTROLLER

Search across all available documentation for this part.

Active

4D Systems Pty Ltd

EMBEDDED GRAPHICS CONTROLLER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PICASO	PICA Series

Applications	Graphics Processor	Graphics Processor
Backlight	-	LED - White
Core Processor	EVE	EVE
Display Mode	-	Transmissive
Display Type	-	TFT - Color
Dot Pitch	-	0.15 mm
Dot Pitch	-	0.15 mm
Dot Pixels	-	320 pixels
Dot Pixels	-	480
Graphics Color	-	Green, Red, Blue
Interface	LCD, OLED, TFT, SD/SDHC, SPI, TTL, I2C, UART	LCD, OLED, TFT, SD/SDHC, SPI, TTL, I2C, UART
Mounting Type	Surface Mount	Surface Mount
Number of I/O	13	13
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	64-TQFP	64-TQFP
Program Memory Type	14 kB	14 kB
Program Memory Type	FLASH	FLASH
RAM Size	14K x 8	14K x 8
Supplier Device Package	64-TQFP (10x10)	64-TQFP (10x10)
Touchscreen	-	Resistive
Viewing Area	-	49 mm
Viewing Area	-	73.4 mm
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

EMBEDDED GRAPHICS CONTROLLER

Part	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Number of I/O	Applications	Program Memory Type	Program Memory Type	Supplier Device Package	Mounting Type	Core Processor	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	RAM Size	Dot Pitch [x]	Dot Pitch [y]	Touchscreen	Backlight	Viewing Area [z]	Viewing Area [y]	Graphics Color	Display Mode	Display Type	Dot Pixels [x]	Dot Pixels [y]
4D Systems Pty Ltd PICASO	I2C, LCD, OLED, SD/SDHC, SPI, TFT, TTL, UART	-40 °C	80 C	13	Graphics Processor	14 kB	FLASH	64-TQFP (10x10)	Surface Mount	EVE	3.6 V	3 V	64-TQFP	14K x 8
4D Systems Pty Ltd PICADILLO-35T	I2C, SPI														0.15 mm	0.15 mm	Resistive	LED - White	49 mm	73.4 mm	Blue, Green, Red	Transmissive	TFT - Color	320 pixels	480

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EMBEDDED GRAPHICS CONTROLLER

Technical documentation and resources

No documents available
