PICADILLO-35T

Obsolete

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 3.5"

Search across all available documentation for this part.

Obsolete

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 3.5"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PICADILLO-35T	PICA Series

Applications	-	Graphics Processor
Backlight	LED - White	LED - White
Core Processor	-	EVE
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color	TFT - Color
Dot Pitch [x]	0.15 mm	0.15 mm
Dot Pitch [y]	0.15 mm	0.15 mm
Dot Pixels [x]	320 pixels	320 pixels
Dot Pixels [y]	480	480
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	I2C, SPI	LCD, OLED, TFT, SD/SDHC, SPI, TTL, I2C, UART
Mounting Type	-	Surface Mount
Number of I/O	-	13
Operating Temperature	-	-40 °C
Operating Temperature	-	80 C
Package / Case	-	64-TQFP
Program Memory Type	-	14 kB
Program Memory Type	-	FLASH
RAM Size	-	14K x 8
Supplier Device Package	-	64-TQFP (10x10)
Touchscreen	Resistive	Resistive
Viewing Area [y]	73.4 mm	73.4 mm
Viewing Area [z]	49 mm	49 mm
Voltage - Supply	-	3.6 V
Voltage - Supply	-	3 V

EMBEDDED GRAPHICS CONTROLLER

Part	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Number of I/O	Applications	Program Memory Type	Program Memory Type	Supplier Device Package	Mounting Type	Core Processor	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	RAM Size	Dot Pitch [x]	Dot Pitch [y]	Touchscreen	Backlight	Viewing Area [z]	Viewing Area [y]	Graphics Color	Display Mode	Display Type	Dot Pixels [x]	Dot Pixels [y]
4D Systems Pty Ltd PICASO	I2C, LCD, OLED, SD/SDHC, SPI, TFT, TTL, UART	-40 °C	80 C	13	Graphics Processor	14 kB	FLASH	64-TQFP (10x10)	Surface Mount	EVE	3.6 V	3 V	64-TQFP	14K x 8
4D Systems Pty Ltd PICADILLO-35T	I2C, SPI														0.15 mm	0.15 mm	Resistive	LED - White	49 mm	73.4 mm	Blue, Green, Red	Transmissive	TFT - Color	320 pixels	480

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

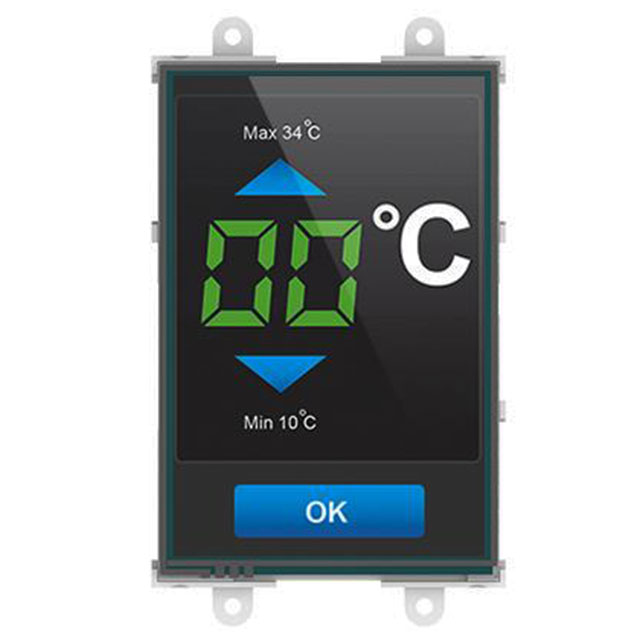

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, SPI 3.5" (88.90mm) 320 x 480
