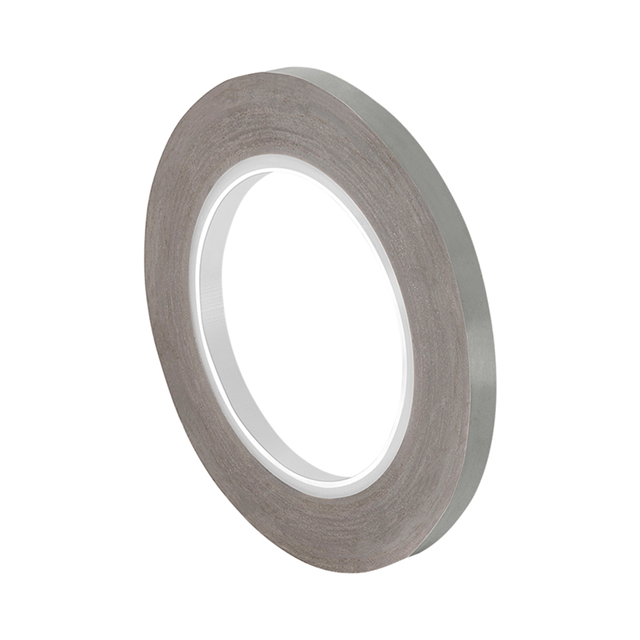

0.25-36-204-5
ActiveTapeCase
TAPE ELECTRICAL GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0.25-36-204-5
ActiveTapeCase
TAPE ELECTRICAL GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0.25-36-204-5 | 204 Series |
|---|---|---|
| Adhesive | Silicone | Silicone |
| Backing, Carrier | PTFE Film | PTFE Film |
| Color | Gray | Gray |
| Tape Type | Electrical | Electrical |
| Temperature Range | 260 °C | 260 °C |
| Temperature Range | 500 °F | 500 °F |
| Thickness | 0.127 mm | 0.076 - 0.254 mm |
| Thickness | 5 mils | 3 - 10 mils |
| Thickness | 0.005 in | 0.003 - 0.01 " |
| Thickness - Adhesive | 1.5 mils | 1.5 - 3 mils |
| Thickness - Adhesive | 0.0015 in | 0.0015 - 0.003 in |
| Thickness - Adhesive | 0.038 mm | 0.038 - 0.076 mm |
| Thickness - Backing, Carrier | - | 0.003 - 0.01 " |
| Thickness - Backing, Carrier | - | 0.076 - 0.254 mm |
| Thickness - Backing, Carrier | - | 3 - 10 mils |
| Thickness - Backing, Carrier [custom] | 0.005 " | 0.005 " |
| Thickness - Backing, Carrier [custom] | 5 mils | 5 mils |
| Thickness - Backing, Carrier [custom] | 0.127 mm | 0.127 mm |
| Usage | High Temperature, Electrically Insulating | High Temperature, Electrically Insulating |
204 Series
TAPE ELECTRICAL GRAY
...
| Part | Adhesive | Tape Type | Thickness - Adhesive | Thickness - Adhesive | Thickness - Adhesive | Backing, Carrier | Temperature Range | Temperature Range | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Color | Thickness | Thickness | Thickness | Usage | Thickness - Backing, Carrier [custom] | Thickness - Backing, Carrier [custom] | Thickness - Backing, Carrier [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TapeCase 10-36-204-10 | Silicone | Electrical | 1.5 mils | 0.0015 in | 0.038 mm | PTFE Film | 260 °C | 500 °F | 0.01 " | 0.254 mm | 10 mils | Gray | 0.254 mm | 10 mils | 0.01 " | Electrically Insulating, High Temperature | |||
TapeCase 12-36-204-10 | Silicone | Electrical | 1.5 mils | 0.0015 in | 0.038 mm | PTFE Film | 260 °C | 500 °F | 0.01 " | 0.254 mm | 10 mils | Gray | 0.254 mm | 10 mils | 0.01 " | Electrically Insulating, High Temperature | |||
TapeCase 1-5-204-5 | Silicone | Electrical | 1.5 mils | 0.0015 in | 0.038 mm | PTFE Film | 260 °C | 500 °F | Gray | 0.127 mm | 5 mils | 0.005 in | Electrically Insulating, High Temperature | 0.005 " | 5 mils | 0.127 mm | |||
TapeCase 0.375-36-204-5 | Silicone | Electrical | 1.5 mils | 0.0015 in | 0.038 mm | PTFE Film | 260 °C | 500 °F | Gray | 0.127 mm | 5 mils | 0.005 in | Electrically Insulating, High Temperature | 0.005 " | 5 mils | 0.127 mm | |||
TapeCase 1.625-36-204-5 | Silicone | Electrical | 1.5 mils | 0.0015 in | 0.038 mm | PTFE Film | 260 °C | 500 °F | Gray | 0.127 mm | 5 mils | 0.005 in | Electrically Insulating, High Temperature | 0.005 " | 5 mils | 0.127 mm | |||
TapeCase 3-5-204-3 | Silicone | Electrical | 3 mils | 0.003 " | 0.076 mm | PTFE Film | 260 °C | 500 °F | 0.003 in | 0.076 mm | 3 mils | Gray | 0.076 mm | 3 mils | 0.003 in | Electrically Insulating, High Temperature | |||
TapeCase 2-36-204-3 | Silicone | Electrical | 3 mils | 0.003 " | 0.076 mm | PTFE Film | 260 °C | 500 °F | 0.003 in | 0.076 mm | 3 mils | Gray | 0.076 mm | 3 mils | 0.003 in | Electrically Insulating, High Temperature | |||
TapeCase 4-5-204-5 | Silicone | Electrical | 1.5 mils | 0.0015 in | 0.038 mm | PTFE Film | 260 °C | 500 °F | Gray | 0.127 mm | 5 mils | 0.005 in | Electrically Insulating, High Temperature | 0.005 " | 5 mils | 0.127 mm | |||
TapeCase 0.375-5-204-10 (PK2) | Silicone | Electrical | 1.5 mils | 0.0015 in | 0.038 mm | PTFE Film | 260 °C | 500 °F | 0.01 " | 0.254 mm | 10 mils | Gray | 0.254 mm | 10 mils | 0.01 " | Electrically Insulating, High Temperature | |||
TapeCase 1/2-36-204-10 | Silicone | Electrical | 1.5 mils | 0.0015 in | 0.038 mm | PTFE Film | 260 °C | 500 °F | 0.01 " | 0.254 mm | 10 mils | Gray | 0.254 mm | 10 mils | 0.01 " | Electrically Insulating, High Temperature |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 7 | $ 38.14 | |
Description
General part information
204 Series
Electrical Tape Silicone Adhesive Gray X
