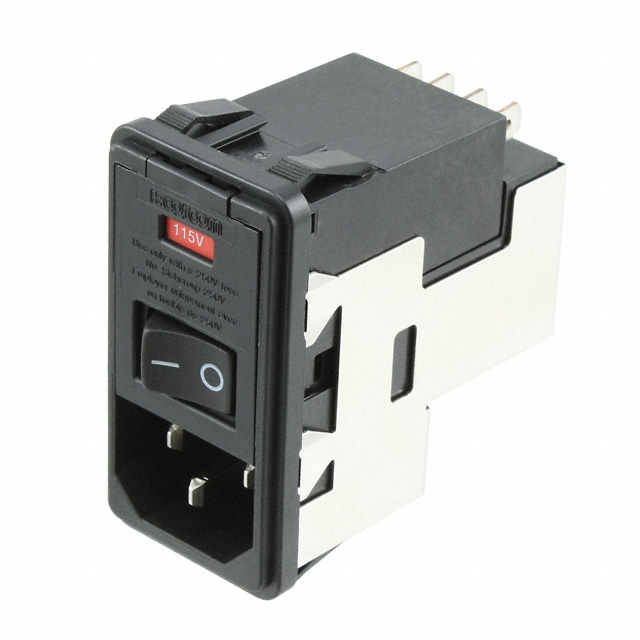

PS0SXSSXA

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	PS0SXSSXA

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Features	Conversion Clip, Shielded, Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size
Panel Thickness [Max]	2.9 mm
Panel Thickness [Max]	0.114 in
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Switch Features	Switch On-Off
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Filter	Approval Agency	Features	Fuse Holder, Drawer	Switch Features	Accomodates a Fuse	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Panel Cutout Dimensions	Connector Type	Mounting Type	Connector Style	Filter Type
TE Connectivity Corcom Filters PS0SXSSXA	10 A	CSA, UL, VDE	Conversion Clip, Shielded, Voltage Selector	Fuse Holder	Switch On-Off		2.9 mm	0.114 in	0.79 mm	0.031 "	10 A	120 VAC	0.187 "	4.7 mm	Quick Connect	Variable Size	Receptacle, Male Blades - Module	Panel Mount, Snap-In	IEC 320-C14	Filtered (EMI, RFI) - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
