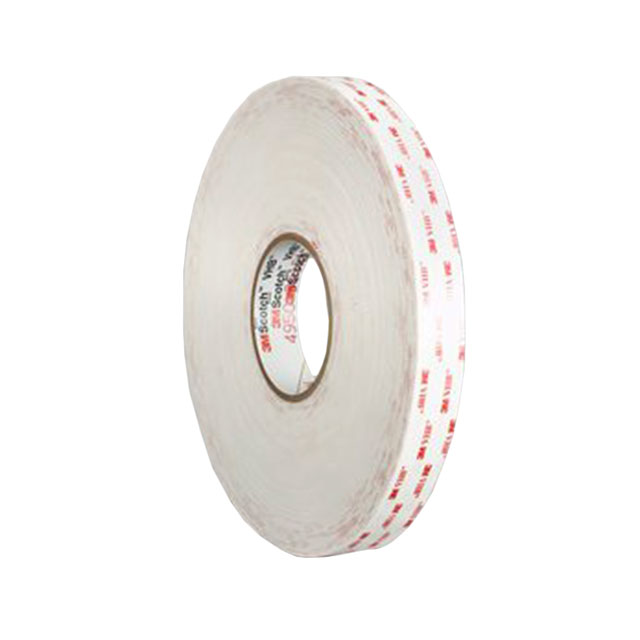

4930(1"X72YD)

Active

3M (TC)

TAPE DBL SIDED WHITE 1"X72YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher

4930(1"X72YD)

Active

3M (TC)

TAPE DBL SIDED WHITE 1"X72YDS

Deep-Dive with AI

DocumentsDate Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4930(1"X72YD)

Adhesive	Acrylic
Backing, Carrier	Paper
Color	White
Length	66 m
Length	216 ft
Length	72 yd
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Thickness	0.635 mm
Thickness	0.635 mm
Thickness	0.025 in
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Usage	General Purpose
Width [x]	25.4 mm
Width [x]	1 in

4930 Series

...

Part	Color	Adhesive	Width [x]	Width [x]	Tape Type	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Length	Length	Length	Usage	Shelf Life Start	Backing, Carrier	Thickness	Thickness	Thickness	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life	Temperature Range	Temperature Range	Length [x]	Length [x]	Width	Width	Width
3M (TC) 4930(1"X72YD)	White	Acrylic	25.4 mm	1 in	Double Coated Double Sided	0.003 in	3 mils	0.076 mm	66 m	216 ft	72 yd	General Purpose	Date of Shipment	Paper	0.635 mm	0.635 mm	0.025 in	4 °C 40 °F	38 °C 100 °F	24 Months
3M (TC) 4930-3-4(12)	White	Acrylic	76.2 mm	3 in	Double Coated Double Sided	0.003 in	3 mils	0.076 mm					Date of Shipment	Paper	0.635 mm	0.635 mm	0.025 in	4 °C 40 °F	38 °C 100 °F	24 Months	93 °C	200 °F	101.6 mm	4 "
3M (TC) 3M 4930 4" X 8"-6	White	Acrylic	101.6 mm	4 "	Double Coated Double Sided	0.003 in	3 mils	0.076 mm	203.2 mm	8 in			Date of Shipment	Paper	0.635 mm	0.635 mm	0.025 in	4 °C 40 °F	38 °C 100 °F	24 Months	93 °C	200 °F
3M (TC) 4930-3/4"X72YD-SMPK	White	Acrylic			Double Coated Double Sided	0.003 in	3 mils	0.076 mm	66 m	216 ft	72 yd	General Purpose	Date of Shipment	Paper	0.635 mm	0.635 mm	0.025 in	4 °C 40 °F	38 °C 100 °F	24 Months	93 °C	200 °F			0.75 in	19.05 mm	0.75 in
3M (TC) 1.125-5-4930	White	Acrylic			Double Coated Double Sided	0.003 in	3 mils	0.076 mm	4.6 m	15 ft	5 yd		Date of Shipment	Paper	0.635 mm	0.635 mm	0.025 in	4 °C 40 °F	38 °C 100 °F	24 Months	93 °C	200 °F			1.13 in		28.58 mm
3M (TC) 4930-4-4(12)	White	Acrylic	101.6 mm	4 "	Double Coated Double Sided	0.003 in	3 mils	0.076 mm					Date of Shipment	Paper	0.635 mm	0.635 mm	0.025 in	4 °C 40 °F	38 °C 100 °F	24 Months	93 °C	200 °F	101.6 mm	4 "
3M (TC) 3M 4930 4" X 6"-6	White	Acrylic	101.6 mm	4 "	Double Coated Double Sided	0.003 in	3 mils	0.076 mm	152.4 mm	6 in			Date of Shipment	Paper	0.635 mm	0.635 mm	0.025 in	4 °C 40 °F	38 °C 100 °F	24 Months	93 °C	200 °F
3M (TC) 4930SQ-0.75(250)	White	Acrylic			Double Coated Double Sided				19.05 mm	0.75 in	0.75 "	General Purpose	Date of Shipment	Paper	0.635 mm	0.635 mm	0.025 in	4 °C 40 °F	38 °C 100 °F	24 Months	93 °C	200 °F			0.75 in	19.05 mm	0.75 in
3M (TC) 4930SQ-0.75(5)	White	Acrylic			Double Coated Double Sided				19.05 mm	0.75 in	0.75 "	General Purpose	Date of Shipment	Paper	0.635 mm	0.635 mm	0.025 in	4 °C 40 °F	38 °C 100 °F	24 Months	93 °C	200 °F			0.75 in	19.05 mm	0.75 in
3M (TC) 4930-0.875-5	White	Acrylic			Double Coated Double Sided	0.003 in	3 mils	0.076 mm	4.6 m	15 ft	5 yd		Date of Shipment	Paper	0.635 mm	0.635 mm	0.025 in	4 °C 40 °F	38 °C 100 °F	24 Months	93 °C	200 °F			0.88 in	0.875 in	22.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 333.89
		18	$ 247.25
		27	$ 237.82

Description

General part information

4930 Series

Double Coated, Double Sided Tape Acrylic Adhesive White 1.00" (25.40mm) X 216' (66.0m) 72 yds

Documents

Technical documentation and resources
