PD3FRA2

Active

Switchcraft Inc.

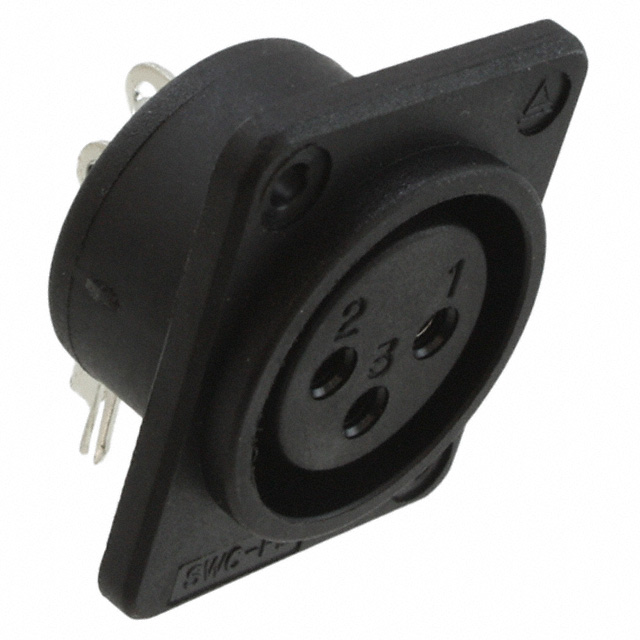

CONN PLUG FMALE XLR 3P TIN SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3P TIN SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PD3FRA2	PD3FRA Series

Applications	Audio	Audio
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Material	Brass	Brass
Fastening Type	Push-Pull	Push-Pull
Features	Ground	Ground
Insert Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Primary Material	Plastic	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	XLR	XLR
Termination	Solder	Solder

CONN PLUG FMALE XLR 3POS SOLDER

Part	Termination	Shell Material	Contact Material	Features	Mounting Feature	Applications	Material Flammability Rating	Fastening Type	Mounting Type	Insert Material	Shell Size - Insert	Color	Connector Type	Primary Material
Switchcraft Inc. PD3FRA1	Solder	Polyamide (PA66), Nylon 6/6	Brass	Ground	Flange	Audio	UL94 V-0	Push-Pull	Panel Mount, Right Angle, Through Hole	Polyamide (PA66), Nylon 6/6	XLR	Black	Female Sockets, Plug	Plastic
Switchcraft Inc. PD3FRA2	Solder	Polyamide (PA66), Nylon 6/6	Brass	Ground	Flange	Audio	UL94 V-0	Push-Pull	Panel Mount, Right Angle, Through Hole	Polyamide (PA66), Nylon 6/6	XLR	Black	Female Sockets, Plug	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Plug, Female Sockets Solder
