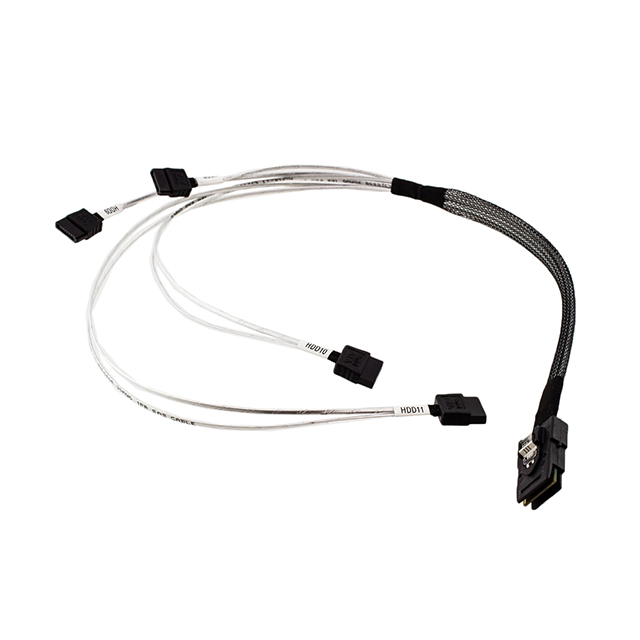

AMPH-874S-STEP-575

Active

Pactech

AMPH MINISAS TO 4X SATA 575MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMPH-874S-STEP-575

Active

Pactech

AMPH MINISAS TO 4X SATA 575MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMPH-874S-STEP-575	AMPH-874S Series

Cable Connectors	miniSAS, SATA (4)	miniSAS, SATA, SATA (4), MiniSAS Low Profile, SATA 4x, SATA Right Angle
Cable Connectors	-	4
Cable Type	Flat	Flat
Color	Black	Black
Connector Type	Plug to Receptacle	Plug to Receptacle, Plug to Receptacle (4)
Fastening Type	Latch Lock	Latch Lock, Push-Pull
Features	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable, SATA Connectors, Amphenol SFF-8087
Frequency - Max	-	4.5 - 6 GHz
Gender	Male to Female	Male to Female
Length	-	650 - 975 mm
Length	-	2.13 - 3.2 ft
Length [x]	1.89 ft	1.64 - 3.28 ft
Length [x]	575 mm	0.75 - 875 mm
Number of Positions	36, 7	7 - 36
Number of Positions	4	4
Shielding	Shielded	Shielded
Usage	Internal	Internal
Wire Gauge	-	30 AWG

AMPH-874S Series

AMPH MINISAS TO 4X SATA 0.5M

Part	Shielding	Connector Type	Gender	Number of Positions	Number of Positions	Wire Gauge	Cable Connectors	Usage	Features	Frequency - Max [Max]	Length [x]	Length [x]	Color	Cable Type	Fastening Type	Length	Length	Cable Connectors
Pactech AMPH-874S-050	Shielded	Plug to Receptacle	Male to Female	7, 36	4	30 AWG	miniSAS, SATA	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable	4.5 GHz	1.64 ft	500 mm	Black	Flat	Latch Lock
Pactech AMPH-874S-050-NL	Shielded	Plug to Receptacle	Male to Female	7, 36	4		miniSAS, SATA (4)	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable		1.64 ft	500 mm	Black	Flat	Push-Pull
Pactech AMPH-874S26-075	Shielded	Plug to Receptacle	Male to Female	7, 36	4		miniSAS, SATA (4)	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable		2.46 ft	0.75 m	Black	Flat	Latch Lock, Push-Pull
Pactech AMPH-874S-100	Shielded	Plug to Receptacle	Male to Female	7, 36	4		miniSAS, SATA	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable		3.28 ft	1 m	Black	Flat	Latch Lock
Pactech AMPH-874S-STEP-950LP	Shielded	Plug to Receptacle	Male to Female	7, 36	4	30 AWG	MiniSAS Low Profile, SATA 4x	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable	4.5 GHz			Black	Flat	Latch Lock, Push-Pull	950 mm	3.12 ft
Pactech AMPH-874S-STEP-925-LP	Shielded	Plug to Receptacle (4)	Male to Female	7, 36	4	30 AWG	MiniSAS Low Profile, SATA 4x	Internal	6Gbps SAS2.1, Amphenol SFF-8087, SATA Connectors	6 Gbps			Black	Flat	Latch Lock, Push-Pull
Pactech AMPH-874S-STEP-575	Shielded	Plug to Receptacle	Male to Female	7, 36	4		miniSAS, SATA (4)	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable		1.89 ft	575 mm	Black	Flat	Latch Lock
Pactech AMPH-874S-RT-SB-650	Shielded	Plug to Receptacle	Male to Female	7, 36	4		miniSAS, SATA Right Angle	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable				Black	Flat	Latch Lock, Push-Pull	650 mm	2.13 ft	4
Pactech AMPH-874S-STEP-875	Shielded	Plug to Receptacle	Male to Female	7, 36	4		miniSAS, SATA (4)	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable		2.87 ft	875 mm	Black	Flat	Latch Lock, Push-Pull
Pactech AMPH-874S-STEP-975-LP-A	Shielded	Plug to Receptacle (4)	Male to Female	7, 36	4	30 AWG	MiniSAS Low Profile, SATA 4x	Internal	6Gbps SAS2.1, Amphenol SFF-8087, SATA Connectors	6 Gbps			Black	Flat	Latch Lock, Push-Pull	975 mm	3.2 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.65
		10	$ 18.09
		20	$ 17.72
		40	$ 17.16

Description

General part information

AMPH-874S Series

36, 7 (4) Position MiniSAS, SATA (4) Plug to Receptacle 1.89' (575.00mm) Black Shielded
