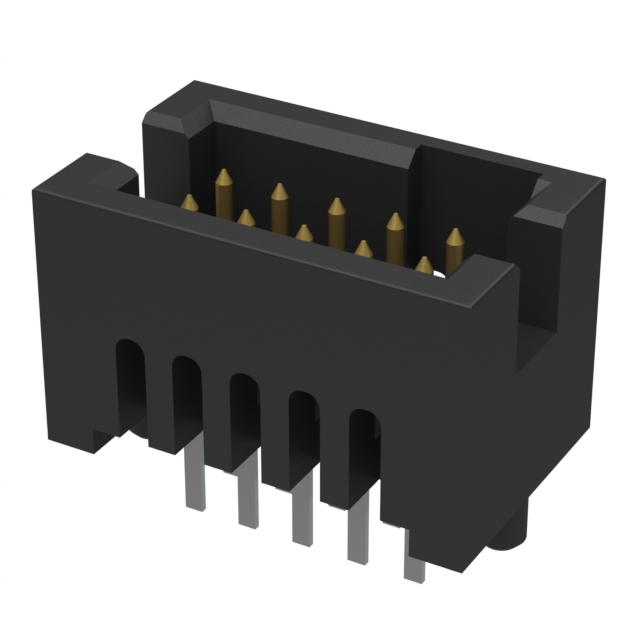

TFC-105-31-L-D-A-K

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

Search across all available documentation for this part.

TFC-105-31-L-D-A-K

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFC-105-31-L-D-A-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.139 in
Contact Length - Mating	3.53 mm
Contact Length - Post	2.03 mm
Contact Length - Post	0.08 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.435 in
Insulation Height	11.05 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFC-105 Series

Headers & Wire Housings Tiger Eye Cost-Effective Terminal Strip, .050" Pitch

Part	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Rows	Termination	Insulation Material	Features	Contact Material	Insulation Height	Insulation Height	Insulation Color	Mounting Type	Voltage Rating	Style	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Positions Loaded	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating
Samtec Inc. TFC-105-31-L-D-A-K	0.05 in	1.27 mm	10	2	Solder	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	Phosphor Bronze	0.435 in	11.05 mm	Black	Through Hole	275 VAC	Board to Board Cable	2.03 mm	0.08 in	10 çin	0.25 çm	Shrouded - 4 Wall	Square	-55 °C	125 °C	Male Pin	Header	0.139 in	3.53 mm	Push-Pull	All	Tin	0.05 in	1.27 mm	UL94 V-0	3.1 A	Gold
Samtec Inc. TFC-105-32-F-D-A-P-TR	0.05 in	1.27 mm	10	2	Solder	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	Phosphor Bronze	0.441 "	11.2 mm	Black	Surface Mount	275 VAC	Board to Board Cable			3 µin	0.076 µm	Shrouded - 4 Wall	Square	-55 °C	125 °C	Male Pin	Header	0.139 in	3.53 mm	Push-Pull	All	Tin	0.05 in	1.27 mm	UL94 V-0	3.1 A	Gold
Samtec Inc. TFC-105-22-F-D-K-TR	0.05 in	1.27 mm	10	2	Solder	Liquid Crystal Polymer (LCP)	Pick and Place	Phosphor Bronze	0.366 in	9.3 mm	Black	Surface Mount	275 VAC 350 VAC	Board to Board Cable			3 µin	0.076 µm	Shrouded - 4 Wall	Square	-55 °C	125 °C	Male Pin	Header	0.139 in	3.53 mm	Push-Pull	All	Tin	0.05 in	1.27 mm	UL94 V-0	3.1 A	Gold
Samtec Inc. TFC-105-02-L-D-K	0.05 in	1.27 mm	10	2	Solder	Liquid Crystal Polymer (LCP)	Pick and Place	Phosphor Bronze	0.226 in	5.74 mm	Black	Surface Mount	275 VAC	Board to Board Cable			10 çin	0.25 çm	Shrouded - 4 Wall	Square	-55 °C	125 °C	Male Pin	Header	0.131 in	3.33 mm	Push-Pull	All	Tin	0.05 in	1.27 mm	UL94 V-0	3.1 A	Gold
Samtec Inc. TFC-105-12-L-D-A-P-TR	0.05 in	1.27 mm	10	2	Solder	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	Phosphor Bronze	0.296 in	7.52 mm	Black	Surface Mount	275 VAC	Board to Board Cable			10 çin	0.25 çm	Shrouded - 4 Wall	Square	-55 °C	125 °C	Male Pin	Header	0.139 in	3.53 mm	Push-Pull	All	Tin	0.05 in	1.27 mm	UL94 V-0	3.1 A	Gold
Samtec Inc. TFC-105-02-F-D-A-K	0.05 in	1.27 mm	10	2	Solder	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	Phosphor Bronze	0.226 in	5.74 mm	Black	Surface Mount	275 VAC	Board to Board Cable			3 µin	0.076 µm	Shrouded - 4 Wall	Square	-55 °C	125 °C	Male Pin	Header	0.131 in	3.33 mm	Push-Pull	All	Tin	0.05 in	1.27 mm	UL94 V-0	3.1 A	Gold
Samtec Inc. TFC-105-32-F-D	0.05 in	1.27 mm	10	2	Solder	Liquid Crystal Polymer (LCP)		Phosphor Bronze	0.441 "	11.2 mm	Black	Surface Mount	275 VAC	Board to Board Cable			3 µin	0.076 µm	Shrouded - 4 Wall	Square	-55 °C	125 °C	Male Pin	Header	0.139 in	3.53 mm	Push-Pull	All	Tin	0.05 in	1.27 mm	UL94 V-0	3.1 A	Gold
Samtec Inc. TFC-105-32-L-D-A-K	0.05 in	1.27 mm	10	2	Solder	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	Phosphor Bronze	0.441 "	11.2 mm	Black	Surface Mount	275 VAC	Board to Board Cable			10 çin	0.25 çm	Shrouded - 4 Wall	Square	-55 °C	125 °C	Male Pin	Header	0.139 in	3.53 mm	Push-Pull	All	Tin	0.05 in	1.27 mm	UL94 V-0	3.1 A	Gold
Samtec Inc. TFC-105-32-L-D	0.05 in	1.27 mm	10	2	Solder	Liquid Crystal Polymer (LCP)		Phosphor Bronze	0.441 "	11.2 mm	Black	Surface Mount	275 VAC 350 VAC	Board to Board Cable			10 çin	0.25 çm	Shrouded - 4 Wall	Square	-55 °C	125 °C	Male Pin	Header	0.139 in	3.53 mm	Push-Pull	All	Tin	0.05 in	1.27 mm	UL94 V-0	3.1 A	Gold
Samtec Inc. TFC-105-12-F-D	0.05 in	1.27 mm	10	2	Solder	Liquid Crystal Polymer (LCP)		Phosphor Bronze	0.296 in	7.52 mm	Black	Surface Mount	275 VAC	Board to Board Cable			3 µin	0.076 µm	Shrouded - 4 Wall	Square	-55 °C	125 °C	Male Pin	Header	0.139 in	3.53 mm	Push-Pull	All	Tin	0.05 in	1.27 mm	UL94 V-0	3.1 A	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.25

Description

General part information

TFC-105 Series

Headers & Wire Housings Tiger Eye Cost-Effective Terminal Strip, .050" Pitch

Documents

Technical documentation and resources

No documents available
