M3231GT

Active

Heyco Products Corporation

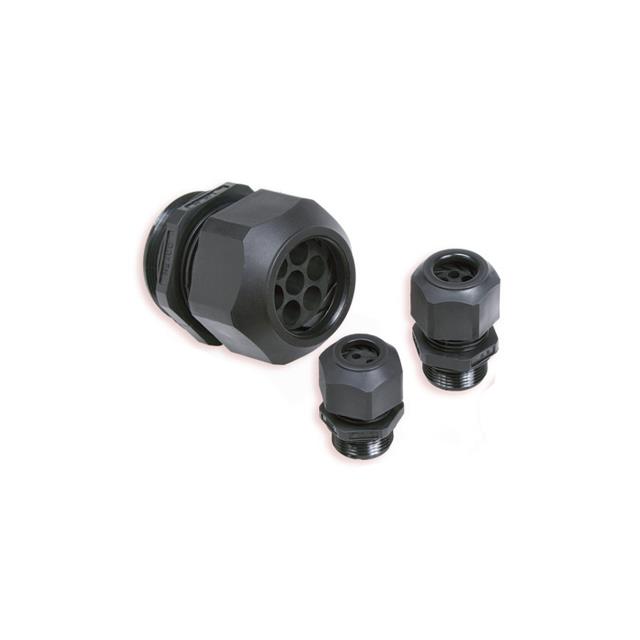

CABLE GRIP 1/2" NPT POLYAMIDE

Search across all available documentation for this part.

Active

Heyco Products Corporation

CABLE GRIP 1/2" NPT POLYAMIDE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3231GT	M3231G Series

Color	Black	Black
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Operating Temperature [Max]	115 °C	112 - 115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Hole Size	3.8 mm	0.875 - 22.2 in
Panel Hole Size	0.15 in	0.15 in
Panel Hole Size	-	7/8
Thread Length	15.49 mm	15.49 - 15.5 mm
Thread Length	0.61 in	0.61 in
Thread Size	1/2" NPT	1/2" NPT
Type	Cable Grip, Multi-Hole	Cable Feedthrough, Cable Grip, Multi-Hole

CABLE FEEDTHROUGH 1/2" NPT

Part	Material	Panel Hole Size	Panel Hole Size	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Type	Thread Length	Thread Length	Thread Size	Color	Panel Hole Size
Heyco Products Corporation M3231GZA	Polyamide (PA66), Nylon 6/6	7/8	0.875 in, 22.2 mm	IP68 - Dust Tight, Waterproof	-40 °C	115 °C	Cable Feedthrough	0.61 in	15.5 mm	1/2" NPT	Black
Heyco Products Corporation M3231GAE	Polyamide (PA66), Nylon 6/6	7/8	0.875 in, 22.2 mm	IP68 - Dust Tight, Waterproof	-40 °C	112 °C	Cable Grip, Multi-Hole	0.61 in	15.5 mm	1/2" NPT	Black
Heyco Products Corporation M3231GT	Polyamide (PA66), Nylon 6/6		3.8 mm	IP68 - Dust Tight, Waterproof	-40 °C	115 °C	Cable Grip, Multi-Hole	0.61 in	15.49 mm	1/2" NPT	Black	0.15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Grip, Multi-Hole Polyamide (PA66), Nylon 6/6 1/2" NPT Black
