Q-0401A0005002M

Active

Amphenol Custom Cable

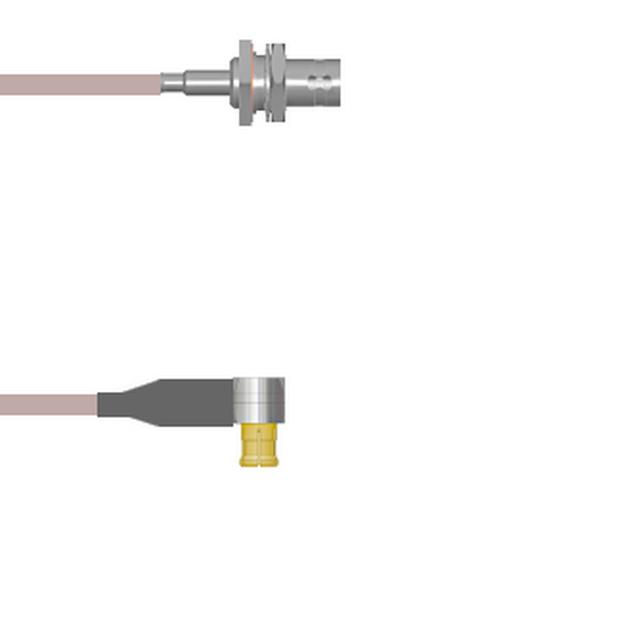

COAX CBL BNC TO MCX 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0401A0005002M

Active

Amphenol Custom Cable

COAX CBL BNC TO MCX 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0401A0005002M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-0401A0 Series

Part	1st Connector	Style	Cable Type	Length	Length	Length	Frequency - Max [Max]	2nd Contact Gender	1st Connector Mounting Type	Overall Impedance	2nd Connector	2nd Connector Mounting Type	Features	Color	1st Connector Mounting Feature	1st Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-0401A0005002M	BNC Jack	BNC to MCX	RG-316	6.6 ft	78.7 in	2 m	4 GHz	Male	Panel Mount	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0401A0003024i	BNC Jack	BNC to MCX	RG-174		24 "	609.6 mm	4 GHz	Male	Panel Mount	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Shielded	Black	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0401A0005072i	BNC Jack	BNC to MCX	RG-316	6 ft	72 in	1.8 m	4 GHz	Male	Panel Mount	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0401A0005060i	BNC Jack	BNC to MCX	RG-316	5 ft	5 '	1.5 m	4 GHz	Male	Panel Mount	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0401A00051.5M	BNC Jack	BNC to MCX	RG-316	4.9 ft	59.1 in	1.5 m	4 GHz	Male	Panel Mount	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0401A0003.25M	BNC Jack	BNC to MCX	RG-174				4 GHz	Male	Panel Mount	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Shielded	Black	Bulkhead - Front Side Nut	Female	9.843 "	250 mm
Amphenol Custom Cable Q-0401A0005006i	BNC Jack	BNC to MCX	RG-316		6 in	152.4 mm	4 GHz	Male	Panel Mount	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0401A0005084i	BNC Jack	BNC to MCX	RG-316	7 ft	84 in	2.1 m	4 GHz	Male	Panel Mount	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0401A0005036i	BNC Jack	BNC to MCX	RG-316		36 in	91.44 cm	4 GHz	Male	Panel Mount	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0401A0005108i	BNC Jack	BNC to MCX	RG-316	9 ft	108 in	2.7 m	4 GHz	Male	Panel Mount	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.47
		25	$ 79.86
		50	$ 78.25
		100	$ 76.64
		250	$ 75.03

Description

General part information

Q-0401A0 Series

Cable Assembly Coaxial BNC to MCX RG-316 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
