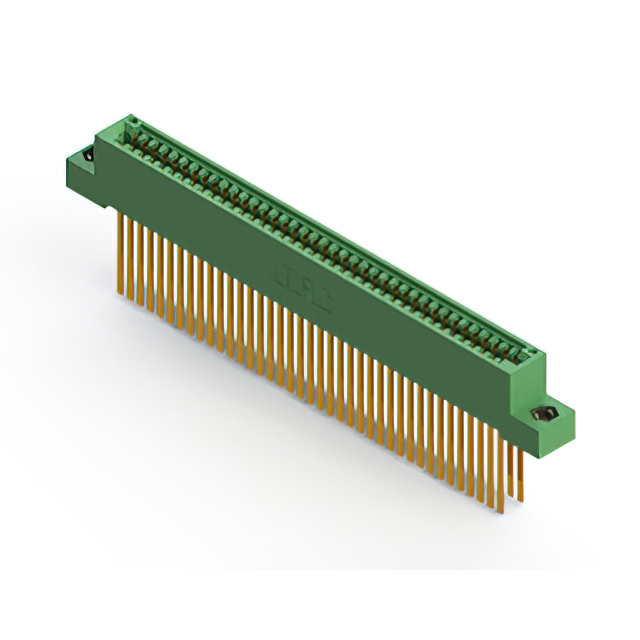

845-078-544-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 78POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-078-544-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 78POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-078-544-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	78
Number of Positions/Bay/Row [custom]	39
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

845-078 Series

...

Part	Material - Insulation	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Material	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Number of Positions/Bay/Row [custom]	Contact Type	Termination	Flange Feature	Flange Feature	Features
EDAC Inc. 845-078-544-204	Diallyl Phthalate (DAP)	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	78	Through Hole	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Dual	Gold	Green	10 Áin	0.25 Ám	2	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	39	Cantilever	Wire Wrap
EDAC Inc. 845-078-520-512	Diallyl Phthalate (DAP)		Side Mount Opening Unthreaded		78	Through Hole	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Dual	Gold	Green	10 Áin	0.25 Ám	2	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	39	Cantilever	Solder	3.25 mm	0.128 in
EDAC Inc. 845-078-558-802	Diallyl Phthalate (DAP)				78	Through Hole Right Angle	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Dual	Gold	Green	10 Áin	0.25 Ám	2	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	39	Cantilever	Solder	3.25 mm	0.128 in
EDAC Inc. 845-078-521-507	Diallyl Phthalate (DAP)		M3 Threaded Insert Top Mount Opening		78	Through Hole	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Dual	Gold	Green	10 Áin	0.25 Ám	2	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	39	Cantilever	Solder
EDAC Inc. 845-078-523-803	Diallyl Phthalate (DAP)	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	78	Through Hole	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Dual	Gold	Green	10 Áin	0.25 Ám	2	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	39	Cantilever	Solder
EDAC Inc. 845-078-558-502	Diallyl Phthalate (DAP)				78	Through Hole Right Angle	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Dual	Gold	Green	10 Áin	0.25 Ám	2	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	39	Cantilever	Solder	3.25 mm	0.128 in
EDAC Inc. 845-078-520-803	Diallyl Phthalate (DAP)	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	78	Through Hole	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Dual	Gold	Green	10 Áin	0.25 Ám	2	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	39	Cantilever	Solder
EDAC Inc. 845-078-521-208	Diallyl Phthalate (DAP)		4-40 Flush Mount Threaded Insert Top Opening		78	Through Hole	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Dual	Gold	Green	10 Áin	0.25 Ám	2	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	39	Cantilever	Solder
EDAC Inc. 845-078-544-208	Diallyl Phthalate (DAP)		4-40 Flush Mount Threaded Insert Top Opening		78	Through Hole	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Dual	Gold	Green	10 Áin	0.25 Ám	2	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	39	Cantilever	Wire Wrap
EDAC Inc. 845-078-560-504	Diallyl Phthalate (DAP)	3.96 mm	Top Mount Opening Unthreaded	0.156 in	78	Board Edge Straddle Mount	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Dual	Gold	Green	10 Áin	0.25 Ám	2	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	39	Cantilever	Solder			Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 101.48

Description

General part information

845-078 Series

78 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
