1059691-1

Active

TE Connectivity Aerospace, Defense and Marine

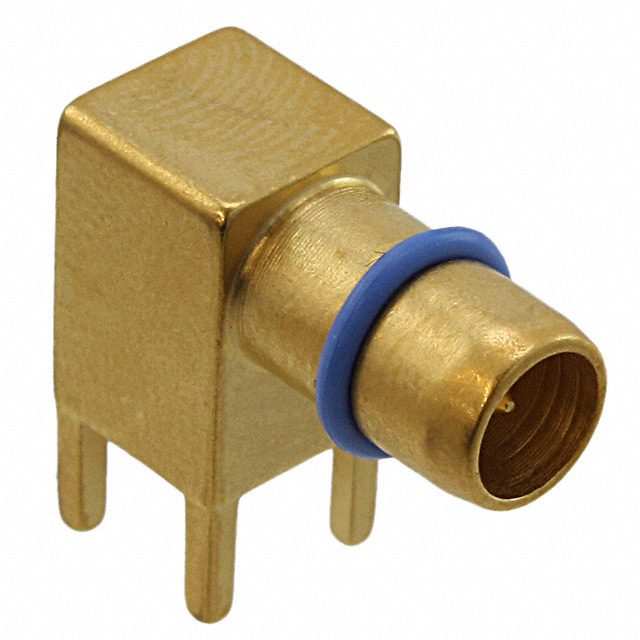

CONN MINI OSP RCPT R/A 50OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN MINI OSP RCPT R/A 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1059691-1

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Mini, OSP
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	22 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	5000
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

CONN MINI OSP RCPT R/A 50OHM PCB

Part	Frequency - Max [Max]	Dielectric Material	Connector Style	Center Contact Material	Body Finish	Mating Cycles	Housing Color	Mounting Type	Shield Termination	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Impedance	Connector Type	Fastening Type	Body Material	Voltage Rating	Number of Ports
TE Connectivity Aerospace, Defense and Marine 1059691-1	22 GHz	Polytetrafluoroethylene (PTFE)	Mini, OSP	Beryllium Copper	Gold	5000	Gold	Through Hole, Right Angle	Solder	Solder	-55 °C	125 °C	Gold	50 Ohms	Male Pin, Receptacle	Snap-On	Stainless Steel	335 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

OSP, Mini Connector Receptacle, Male Pin 50 Ohms Through Hole, Right Angle Solder
