HLCD-40-40.00-TD-TH-1

Active

Samtec Inc.

CBL ASSM SELF-MATE 80POS 40" HDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLCD-40-40.00-TD-TH-1

Active

Samtec Inc.

CBL ASSM SELF-MATE 80POS 40" HDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLCD-40-40.00-TD-TH-1

Cable Termination	IDC
Color	Ribbon, Blue
Connector Type	Hermaphroditic to Self Mating, Reversed, Hermaphroditic, Self Mating, Non-Gendered
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Length [x]	1.02 m
Length [x]	3.33 '
Number of Positions	80
Number of Rows	2
Pitch - Cable	0.01 in
Pitch - Cable	0.25 mm
Pitch - Connector	0.02 in
Pitch - Connector	0.5 mm
Shielding	Shielded

HLCD-40 Series

Part	Shielding	Color	Number of Positions	Pitch - Cable	Pitch - Cable	Cable Termination	Contact Finish	Connector Type	Number of Rows	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length	Length
Samtec Inc. HLCD-40-40.00-TD-TH-1	Shielded	Blue Ribbon	80	0.01 in	0.25 mm	IDC	Gold	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	2	1.02 m	3.33 '	0.02 in	0.5 mm	10 Áin	0.25 Ám
Samtec Inc. HLCD-40-18.00-TR-TR-1	Shielded	Blue Ribbon	80	0.01 in	0.25 mm	IDC	Gold	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	2	457.2 mm	1.5 ft	0.02 in	0.5 mm	10 Áin	0.25 Ám
Samtec Inc. HLCD-40-06.00-TD-TH-1	Shielded	Blue Ribbon	80	0.01 in	0.25 mm	IDC	Gold	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	2			0.02 in	0.5 mm	10 Áin	0.25 Ám	152.4 mm	6 "	0.5 '
Samtec Inc. HLCD-40-40.00-TR-TR-1	Shielded	Blue Ribbon	80	0.01 in	0.25 mm	IDC	Gold	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	2	1.02 m	3.33 '	0.02 in	0.5 mm	10 Áin	0.25 Ám
Samtec Inc. HLCD-40-06.00-TR-TR-1	Shielded	Blue Ribbon	80	0.01 in	0.25 mm	IDC	Gold	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	2			0.02 in	0.5 mm	10 Áin	0.25 Ám	152.4 mm	6 "	0.5 '
Samtec Inc. HLCD-40-24.00-TR-TR-1	Shielded	Blue Ribbon	80	0.01 in	0.25 mm	IDC	Gold	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	2	609.6 mm	2 '	0.02 in	0.5 mm	10 Áin	0.25 Ám
Samtec Inc. HLCD-40-02.00-TD-TH-1	Shielded	Blue Ribbon	80	0.01 in	0.25 mm	IDC	Gold	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	2			0.02 in	0.5 mm	10 Áin	0.25 Ám	50.8 mm	2 "		0.167 '
Samtec Inc. HLCD-40-12.00-TD-TH-2	Shielded	Blue Ribbon	80	0.01 in	0.25 mm	IDC	Gold	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	2			0.02 in	0.5 mm	10 Áin	0.25 Ám	304.8 mm			1 ft
Samtec Inc. HLCD-40-06.00-TD-TH-2	Shielded	Blue Ribbon	80	0.01 in	0.25 mm	IDC	Gold	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	2			0.02 in	0.5 mm	10 Áin	0.25 Ám	152.4 mm	6 "	0.5 '
Samtec Inc. HLCD-40-24.00-TD-TH-1	Shielded	Blue Ribbon	80	0.01 in	0.25 mm	IDC	Gold	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	2	609.6 mm	2 '	0.02 in	0.5 mm	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 207.25
		10	$ 162.20
		25	$ 147.98
		50	$ 138.40

Description

General part information

HLCD-40 Series

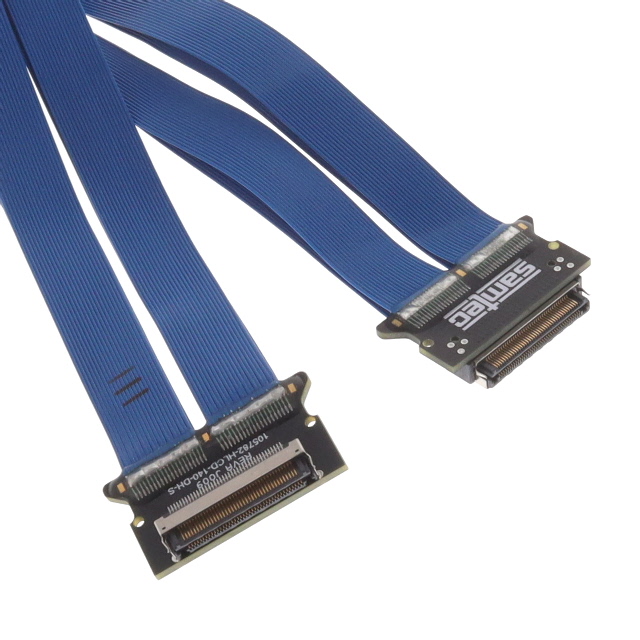

80 Position Cable Assembly Rectangular Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic, Reversed 3.33' (1.02m)
