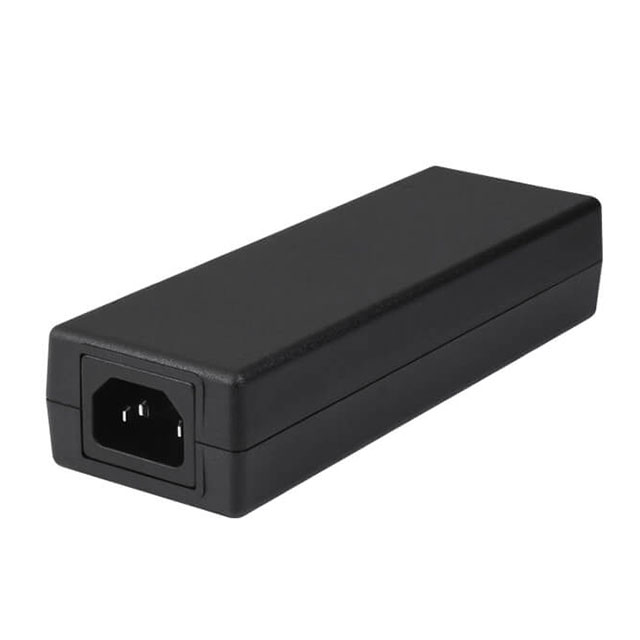

SDI160G-48-U-P51

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 48V 158W

Deep-Dive with AI

Search across all available documentation for this part.

SDI160G-48-U-P51

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 48V 158W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDI160G-48-U-P51

Applications	ITE (Commercial)
Approval Agency	UL, EN, FCC, PSE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	3.3 A
Efficiency	90 %
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	158 W
Region Utilized	International
Size / Dimension [x]	6.34 "
Size / Dimension [x]	161 mm
Size / Dimension [y]	54.2 mm
Size / Dimension [y]	2.13 in
Size / Dimension [z]	1.31 "
Size / Dimension [z]	33.2 mm
Standard Number	61000-3-3, 55032 Class B, 61000-3-2, 62368-1, 55024
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V

SDI160 Series

Part	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Form	Approval Agency	Input Connector	Output Connector	Output Connector	No Load Power Consumption [Max]	Efficiency	Voltage - Output	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	Applications	Cord Length	Cord Length	Current - Output (Max) [Max]	Operating Temperature [Max]	Efficiency	Cord Length
CUI Inc. SDI160G-48-U-P51	Cord	90 VAC	264 VAC	International	Desktop (Class I)	EN FCC PSE UL	IEC 320-C14	4 Pin	Power DIN	150 mW	90 %	48 V	158 W	54.2 mm	6.34 "	2.13 in	1.31 "	161 mm	33.2 mm	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	1.5 m	59 in	3.3 A	40 °C
CUI Inc. SDI160G-24-U-P51	Cord	90 VAC	264 VAC	International	Desktop (Class I)	EN FCC PSE UL	IEC 320-C14	4 Pin	Power DIN	150 mW	90 %	24 V	158 W	54.2 mm	6.34 "	2.13 in	1.31 "	161 mm	33.2 mm	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	1.5 m	59 in	6.6 A	40 °C
CUI Inc. SDI160G-48-UD2-P51	Cord	90 VAC	264 VAC	Europe	Desktop (Class II)	EN FCC PSE UL	IEC 320-C8	4 Pin	Power DIN	150 mW	90 %	48 V	158 W	54 mm	5.91 "	2.13 in	1.3 "	150 mm	33 mm	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	1.5 m	59 in	3.3 A	40 °C
CUI Inc. SDI160-48-U-P51	Cord	100 VAC	240 VAC	International	Desktop (Class I)	CE cUL cULus FCC UL	IEC 320-C14	4 Pin	Power DIN	150 mW		48 V	158 W	74 mm	6.9 in	2.91 "	1.65 "	175.2 mm	42 mm	62368-1	ITE (Commercial)	1.5 m	59 in	3.3 A	40 °C	CoC Tier 2 Level VI
CUI Inc. SDI160G-12-U2-P51	Cord	90 VAC	264 VAC	Europe	Desktop (Class I)	EN FCC PSE UL	IEC 320-C14	4 Pin	Power DIN	150 mW	90 %	12 V	150 W	54.2 mm	6.34 "	2.13 in	1.31 "	161 mm	33.2 mm	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	47.2 in		12.5 A	40 °C		1.2 m
CUI Inc. SDI160G-19-U-P51	Cord	90 VAC	264 VAC	International	Desktop (Class I)	EN FCC PSE UL	IEC 320-C14	4 Pin	Power DIN	150 mW	90 %	19 V	160 W	54.2 mm	6.34 "	2.13 in	1.31 "	161 mm	33.2 mm	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	1.5 m	59 in	8.4 A	40 °C
CUI Inc. SDI160G-12-UD-P51	Cord	90 VAC	264 VAC	International	Desktop (Class II)	EN FCC PSE UL	IEC 320-C8	4 Pin	Power DIN	150 mW	90 %	12 V	150 W	54 mm	5.91 "	2.13 in	1.3 "	150 mm	33 mm	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	47.2 in		12.5 A	40 °C		1.2 m
CUI Inc. SDI160G-24-UDC-P51	Cord	90 VAC	264 VAC	North America	Desktop (Class II)	EN FCC PSE UL	IEC 320-C8	4 Pin	Power DIN	150 mW	90 %	24 V	158 W	54 mm	5.91 "	2.13 in	1.3 "	150 mm	33 mm	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	1.5 m	59 in	6.6 A	40 °C
CUI Inc. SDI160G-24-UC-P51	Cord	90 VAC	264 VAC	North America	Desktop (Class I)	EN FCC PSE UL	IEC 320-C14	4 Pin	Power DIN	150 mW	90 %	24 V	158 W	54.2 mm	6.34 "	2.13 in	1.31 "	161 mm	33.2 mm	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	1.5 m	59 in	6.6 A	40 °C
CUI Inc. SDI160G-24-UD2-P51	Cord	90 VAC	264 VAC	Europe	Desktop (Class II)	EN FCC PSE UL	IEC 320-C8	4 Pin	Power DIN	150 mW	90 %	24 V	158 W	54 mm	5.91 "	2.13 in	1.3 "	150 mm	33 mm	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	ITE (Commercial)	1.5 m	59 in	6.6 A	40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.75

Description

General part information

SDI160 Series

48V 158 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
