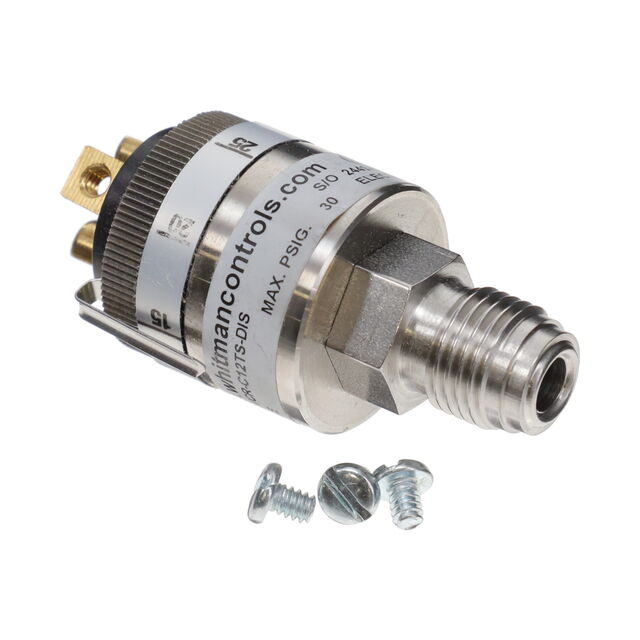

W117G-3H-VCR-C12TS-DIS

Active

Whitman Controls, LLC

PRESSURE SWITCH 1.6-30 PSIG

Search across all available documentation for this part.

Active

Whitman Controls, LLC

PRESSURE SWITCH 1.6-30 PSIG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W117G-3H-VCR-C12TS-DIS	W117G Series

Accuracy	4.14 kPa	4.14 - 13.79 kPa
Accuracy	0.6 PSI	0.6 - 2 PSI
Accuracy	-	68.95 kPa
Maximum Pressure [Max]	-206.84 kPa	-206.84 - 3447.38 kPa
Maximum Pressure [Max]	-30 PSI	-30 - 500 PSI
Operating Pressure [Max]	30 PSI	30 - 500 PSI
Operating Pressure [Max]	206.84 kPa	206.84 - 3447.38 kPa
Operating Pressure [Min]	11.03 kPa	11.03 - 137.9 kPa
Operating Pressure [Min]	1.6 PSI	1.6 - 20 PSI
Operating Temperature [Max]	107 °C	107 °C
Operating Temperature [Min]	-54 °C	-54 °C
Output Type	SPDT	SPDT
Package / Case	Cylinder, Threaded	Cylinder, Threaded
Port Size	0.25 "	0.125 - 0.25 "
Port Size	VCR®, Male	Male, VCR®
Port Size	6.35 mm	3.18 - 6.35 mm
Port Style	Threaded	Threaded
Pressure Type	Switch	Switch
Termination Style	Screw Terminal	Screw Terminal, Wire Leads, Quick Connect - 0.250" (6.3mm)

PRESSURE SWITCH 4-100 PSIG

Part	Port Size	Port Size	Port Size	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Termination Style	Pressure Type	Package / Case	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Accuracy	Accuracy	Accuracy
Whitman Controls, LLC W117G-10H-C52TS-DIS	0.125 "	3.18 mm	Male	-54 °C	107 °C	SPDT	Threaded	100 PSI	689.48 kPa	Screw Terminal	Switch	Cylinder, Threaded	4.5 PSI	689.48 kPa	100 PSI	31.03 kPa	13.79 kPa	2 PSI
Whitman Controls, LLC W117G-3H-VCR-C12TS-DIS	0.25 "	6.35 mm	Male, VCR®	-54 °C	107 °C	SPDT	Threaded	-30 PSI	-206.84 kPa	Screw Terminal	Switch	Cylinder, Threaded	1.6 PSI	206.84 kPa	30 PSI	11.03 kPa	4.14 kPa	0.6 PSI
Whitman Controls, LLC W117G-10H-VCR-C52L-DIS	0.25 "	6.35 mm	Male, VCR®	-54 °C	107 °C	SPDT	Threaded	100 PSI	689.48 kPa	Wire Leads	Switch	Cylinder, Threaded	4.5 PSI	689.48 kPa	100 PSI	31.03 kPa	13.79 kPa	2 PSI
Whitman Controls, LLC W117G-10H-C52L-DIS	0.125 "	3.18 mm	Male	-54 °C	107 °C	SPDT	Threaded	100 PSI	689.48 kPa	Wire Leads	Switch	Cylinder, Threaded	4.5 PSI	689.48 kPa	100 PSI	31.03 kPa	13.79 kPa	2 PSI
Whitman Controls, LLC W117G-50H-VCR-C52TB-DIS	0.25 "	6.35 mm	Male, VCR®	-54 °C	107 °C	SPDT	Threaded	500 PSI	3447.38 kPa	Quick Connect - 0.250" (6.3mm)	Switch	Cylinder, Threaded	20 PSI	3447.38 kPa	500 PSI	137.9 kPa	10 PSI		68.95 kPa
Whitman Controls, LLC W117G-3H-VCR-C52L-DIS	0.25 "	6.35 mm	Male, VCR®	-54 °C	107 °C	SPDT	Threaded	-30 PSI	-206.84 kPa	Wire Leads	Switch	Cylinder, Threaded	1.6 PSI	206.84 kPa	30 PSI	11.03 kPa	4.14 kPa	0.6 PSI
