807-048-459-212

Active

EDAC Inc.

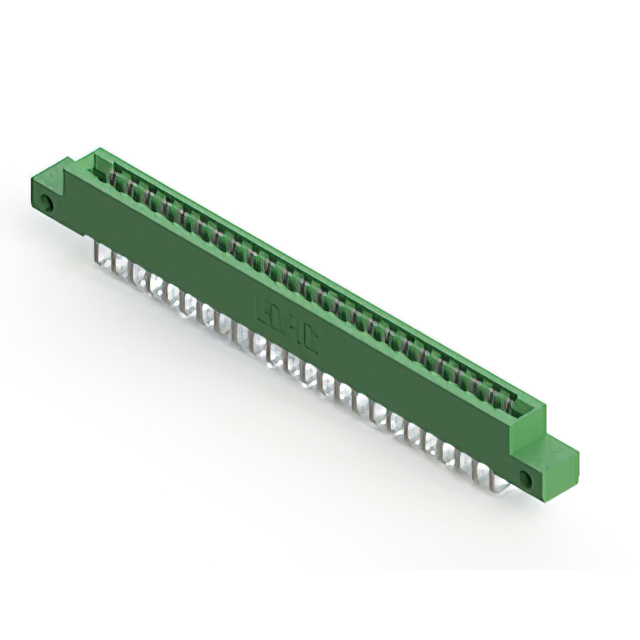

CARD EDGE CONNECTOR, 48 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-048-459-212

Active

EDAC Inc.

CARD EDGE CONNECTOR, 48 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-048-459-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	48
Number of Positions/Bay/Row [custom]	24
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	2

807-048 Series

...

Part	Gender	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination	Contact Type	Read Out	Mounting Type	Color	Material - Insulation	Contact Material	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Card Type	Termination Rows	Flange Feature	Flange Feature	Features
EDAC Inc. 807-048-540-203	Female	0.116 in	Floating Bobbin Flush Mount	2.95 mm	125 °C	-40 °C	48	Wire Wrap	Semi Bellows	Dual	Through Hole	Green	Diallyl Phthalate (DAP)	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	24	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	2
EDAC Inc. 807-048-459-201	Female				125 °C	-40 °C	48	Solder	Semi Bellows	Single	Through Hole Right Angle	Green	Diallyl Phthalate (DAP)	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	24			2	Non Specified - Dual Edge	2
EDAC Inc. 807-048-500-208	Female		4-40 Flush Mount Threaded Insert Top Opening		125 °C	-40 °C	48	Solder Eyelet(s)	Semi Bellows	Dual	Through Hole	Green	Diallyl Phthalate (DAP)	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	24	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	2
EDAC Inc. 807-048-459-212	Female		Side Mount Opening Unthreaded		125 °C	-40 °C	48	Solder	Semi Bellows	Single	Through Hole Right Angle	Green	Diallyl Phthalate (DAP)	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	24			2	Non Specified - Dual Edge	2	3.25 mm	0.128 in
EDAC Inc. 807-048-560-203	Female	0.116 in	Floating Bobbin Flush Mount	2.95 mm	125 °C	-40 °C	48	Solder	Semi Bellows	Dual	Board Edge Straddle Mount	Green	Diallyl Phthalate (DAP)	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	24	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	2			Card Extender
EDAC Inc. 807-048-458-208	Female		4-40 Flush Mount Threaded Insert Top Opening		125 °C	-40 °C	48	Solder	Semi Bellows	Single	Through Hole Right Angle	Green	Diallyl Phthalate (DAP)	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	24			2	Non Specified - Dual Edge	2
EDAC Inc. 807-048-400-208	Female		4-40 Flush Mount Threaded Insert Top Opening		125 °C	-40 °C	48	Solder Eyelet(s)	Semi Bellows	Dual	Through Hole	Green	Diallyl Phthalate (DAP)	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	24			2	Non Specified - Dual Edge	2
EDAC Inc. 807-048-458-203	Female	0.116 in	Floating Bobbin Flush Mount	2.95 mm	125 °C	-40 °C	48	Solder	Semi Bellows	Single	Through Hole Right Angle	Green	Diallyl Phthalate (DAP)	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	24			2	Non Specified - Dual Edge	2
EDAC Inc. 807-048-455-203	Female	0.116 in	Floating Bobbin Flush Mount	2.95 mm	125 °C	-40 °C	48	Solder	Semi Bellows	Dual	Board Edge Straddle Mount	Green	Diallyl Phthalate (DAP)	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	24			2	Non Specified - Dual Edge	2			Card Extender
EDAC Inc. 807-048-540-202	Female	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	125 °C	-40 °C	48	Wire Wrap	Semi Bellows	Dual	Through Hole	Green	Diallyl Phthalate (DAP)	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	24	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 88.29

Description

General part information

807-048 Series

48 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green

Documents

Technical documentation and resources
