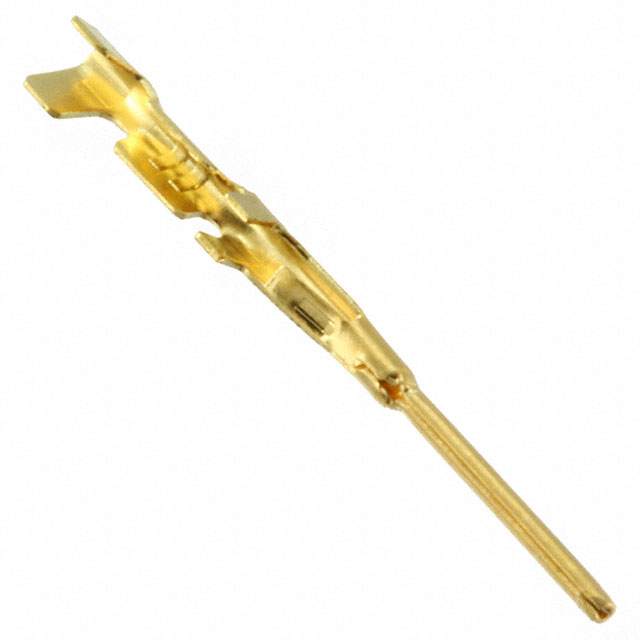

T1M44-R-2830-01-G
ActiveSamtec Inc.
CONN PIN 28-30AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
T1M44-R-2830-01-G
ActiveSamtec Inc.
CONN PIN 28-30AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T1M44-R-2830-01-G |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 27.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.28 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 2500 | $ 0.15 | |||
| Tape & Reel (TR) | 35000 | $ 0.12 | ||
| 70000 | $ 0.11 | |||
Description
General part information
T1M44-R Series
Pin Contact Gold 28-30 AWG Crimp Stamped
