Specification	52929-1

Color	Red
Contact Finish	Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter (Max)	0.125 in
Insulation Diameter (Min)	0.08 in
Length - Overall	0.799 in
Length - Ring Center to Termination	0.25 in
Length - Termination	0.404 in
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Tongue Inside Opening	0.14 in
Width - Outer Edges	0.25 in
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

52929 Series

Part	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Length - Overall	Width - Outer Edges	Terminal Type	Stud/Tab Size	Contact Finish	Mounting Type	Insulation	Color	Contact Material	Termination	Length - Termination	Insulation Diameter (Min)	Insulation Diameter (Max)	Tongue Inside Opening	Material - Insulation	Length - Ring Center to Termination
TE Connectivity AMP Connectors 52929-1	16 AWG	22 AWG	0.799 in	0.25 in	Snap Spring	6 Stud	Tin	Free Hanging (In-Line)	Insulated	Red	Copper	Crimp	0.404 in	0.08 in	0.125 in	0.14 in	Nylon PA Polyamide	0.25 in

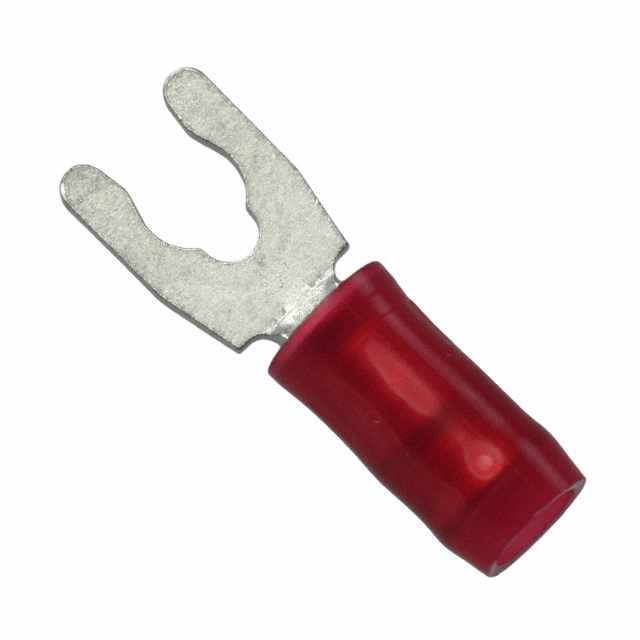

TE Connectivity AMP Connectors 8-52929-1	16 AWG	22 AWG	0.799 in	0.25 in	Snap Spring	6 Stud	Tin	Free Hanging (In-Line)	Insulated	Red	Copper	Crimp	0.404 in	0.08 in	0.125 in	0.14 in	Nylon PA Polyamide	0.25 in
