8901-4-10

Active

3M (TC)

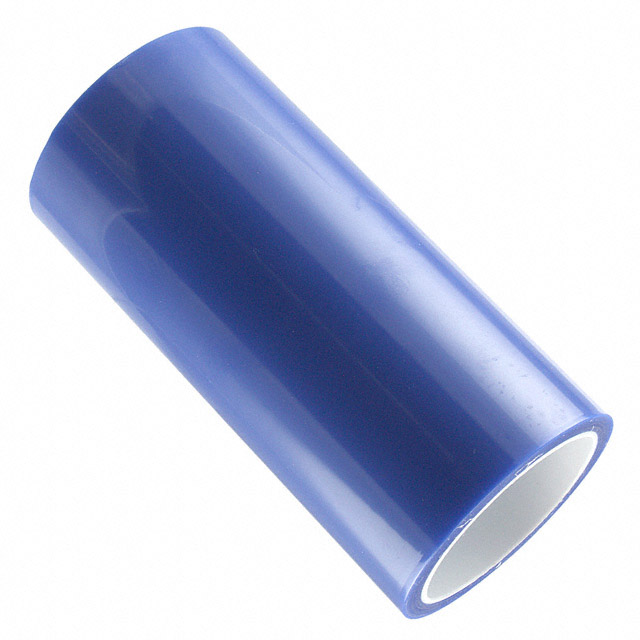

TAPE SPLICING BLUE 4"X10YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Poly Splicing Tapes Bulletin +1

8901-4-10

Active

3M (TC)

TAPE SPLICING BLUE 4"X10YDS

Deep-Dive with AI

DocumentsDatasheet Poly Splicing Tapes Bulletin +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8901-4-10

Adhesive	Silicone Thermosetting
Backing, Carrier	Polyester
Color	Blue
Length [x]	30 ft
Length [x]	9.1 m
Length [x]	10 yds
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Splicing
Temperature Range [Max]	204 °C, 400 °F
Temperature Range [Min]	-65 °F, -54 °C
Thickness	0.0026 "
Thickness	0.066 mm
Thickness	2.6 mils
Thickness - Adhesive	0.0017 in
Thickness - Adhesive	1.7 mils
Thickness - Adhesive	0.043 mm
Thickness - Backing, Carrier	0.0009 in
Thickness - Backing, Carrier	0.9 mils
Thickness - Backing, Carrier	0.023 mm
Usage	High Temperature Adhesion
Width [x]	4 "
Width [x]	101.6 mm

8901 Series

...

Part	Adhesive	Tape Type	Backing, Carrier	Shelf Life	Temperature Range [Max]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Thickness	Thickness	Thickness	Width	Width	Width	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length	Length	Length	Shelf Life Start	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [diameter]	Width	Usage	Length [x]	Length [x]	Length [x]	Width [x]	Width [x]	Width [diameter]
3M (TC) 3M 8901 1.75" X 72YD	Silicone Thermosetting	Splicing	Polyester	24 Months	204 °C	400 °F	-60 °F	-50 °C	0.061 mm	0.0024 in	2.4 mils	44.45 mm	1.75 in	1 3/4	0.0009 in	0.9 mils	0.023 mm	16 °C 60 °F	27 °C 80 °F	66 m	216 ft	72 yd	Date of Manufacture	Blue	1.5 mils	0.0015 in	0.038 mm
3M (TC) 8901OD-0.5(250)	Silicone Thermosetting	Splicing	Polyester	24 Months	204 °C	400 °F	-60 °F	-50 °C	0.061 mm	0.0024 in	2.4 mils	12.7 mm	0.5 in		0.0009 in	0.9 mils	0.023 mm	16 °C 60 °F	27 °C 80 °F				Date of Manufacture	Blue	1.5 mils	0.0015 in	0.038 mm	0.5 in
3M (TC) 8901-10.5" X 1.25"-100	Silicone Thermosetting	Splicing	Polyester	24 Months	204 °C	400 °F	-60 °F	-50 °C	0.061 mm	0.0024 in	2.4 mils	266.7 mm	10.5 in		0.0009 in	0.9 mils	0.023 mm	16 °C 60 °F	27 °C 80 °F	31.75 mm	1.25 in		Date of Manufacture	Blue	1.5 mils	0.0015 in	0.038 mm
3M (TC) 8901-4-10	Silicone Thermosetting	Splicing	Polyester	24 Months		204 °C 400 °F	-65 °F -54 °C		0.066 mm	0.0026 "	2.6 mils				0.0009 in	0.9 mils	0.023 mm	16 °C 60 °F	27 °C 80 °F				Date of Manufacture	Blue	1.7 mils	0.0017 in	0.043 mm			High Temperature Adhesion	30 ft	9.1 m	10 yds	4 "	101.6 mm
3M (TC) 3M 8901 5.67" X 72YD	Silicone Thermosetting	Splicing	Polyester	24 Months	204 °C	400 °F	-60 °F	-50 °C	0.061 mm	0.0024 in	2.4 mils				0.0009 in	0.9 mils	0.023 mm	16 °C 60 °F	27 °C 80 °F	66 m	216 ft	72 yd	Date of Manufacture	Blue	1.5 mils	0.0015 in	0.038 mm							5.67 in	144 mm
3M (TC) 3M 8901 CIRCLE-2.000"-100	Silicone Thermosetting	Splicing	Polyester	24 Months	204 °C	400 °F	-60 °F	-50 °C	0.061 mm	0.0024 in	2.4 mils				0.0009 in	0.9 mils	0.023 mm	16 °C 60 °F	27 °C 80 °F				Date of Manufacture	Blue	1.5 mils	0.0015 in	0.038 mm	2 in								50.8 mm
3M (TC) 3-10-8901	Silicone Thermosetting	Splicing	Polyester	24 Months	204 °C	400 °F	-60 °F	-50 °C	0.061 mm	0.0024 in	2.4 mils				0.0009 in	0.9 mils	0.023 mm	16 °C 60 °F	27 °C 80 °F				Date of Manufacture	Blue	1.5 mils	0.0015 in	0.038 mm				30 ft	9.1 m	10 yds	3 in	76.2 mm
3M (TC) 3M 8901 CIRCLE-0.188"-2000	Silicone Thermosetting	Splicing	Polyester	24 Months	204 °C	400 °F	-60 °F	-50 °C	0.061 mm	0.0024 in	2.4 mils	4.78 mm	0.19 in		0.0009 in	0.9 mils	0.023 mm	16 °C 60 °F	27 °C 80 °F				Date of Manufacture	Blue	1.5 mils	0.0015 in	0.038 mm
3M (TC) 8901-0.75" X 1.25"-1000	Silicone Thermosetting	Splicing	Polyester	24 Months	204 °C	400 °F	-60 °F	-50 °C	0.061 mm	0.0024 in	2.4 mils	0.75 in	0.75 in		0.0009 in	0.9 mils	0.023 mm	16 °C 60 °F	27 °C 80 °F	31.75 mm	1.25 in		Date of Manufacture	Blue	1.5 mils	0.0015 in	0.038 mm		19.05 mm
3M (TC) 8901-0.75" X 8"-250	Silicone Thermosetting	Splicing	Polyester	24 Months	204 °C	400 °F	-60 °F	-50 °C	0.061 mm	0.0024 in	2.4 mils	0.75 in	0.75 in		0.0009 in	0.9 mils	0.023 mm	16 °C 60 °F	27 °C 80 °F	203.2 mm	8 in		Date of Manufacture	Blue	1.5 mils	0.0015 in	0.038 mm		19.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.87
		10	$ 56.35
		25	$ 52.83
		50	$ 49.31
		100	$ 46.84

Description

General part information

8901 Series

Splicing Tape Silicone Thermosetting Adhesive Blue 4.00" (101.60mm) X 30' (9.1m) 10 yds
