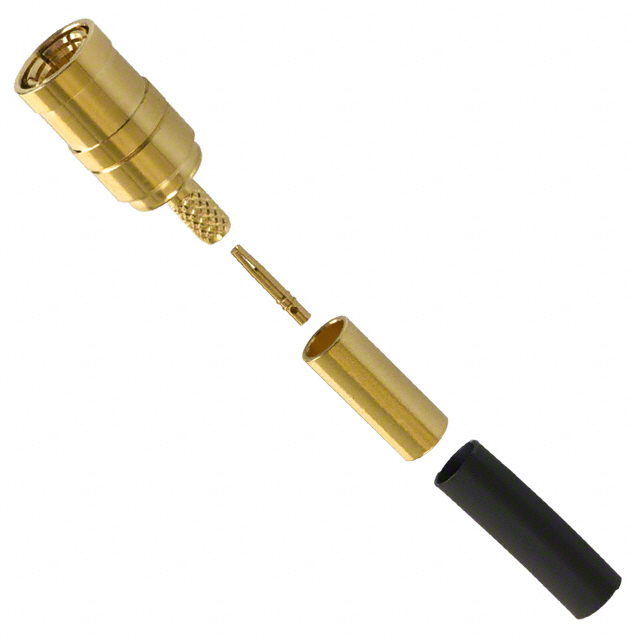

142186-75

Active

Amphenol RF

CONN MINI SMB PLUG STR 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN MINI SMB PLUG STR 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	142186-75

Body Finish	Gold
Body Material	Brass
Cable Group	187, RG-179
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Impedance	75 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Mating Cycles	Mounting Type	Connector Type	Contact Termination	Center Contact Material	Number of Ports	Cable Group	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Body Material	Insertion Loss	Housing Color	Center Contact Plating	Fastening Type	Shield Termination	Impedance
Amphenol RF 142186-75	500	Free Hanging (In-Line)	Female Socket Plug	Solder	Beryllium Copper	1	187 RG-179	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Gold	Brass	0.3 dB	Gold	Gold	Snap-On	Crimp	75 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Mini Connector Plug, Female Socket 75 Ohms Free Hanging (In-Line) Solder
