Q-2001N0003108i

Active

Amphenol Custom Cable

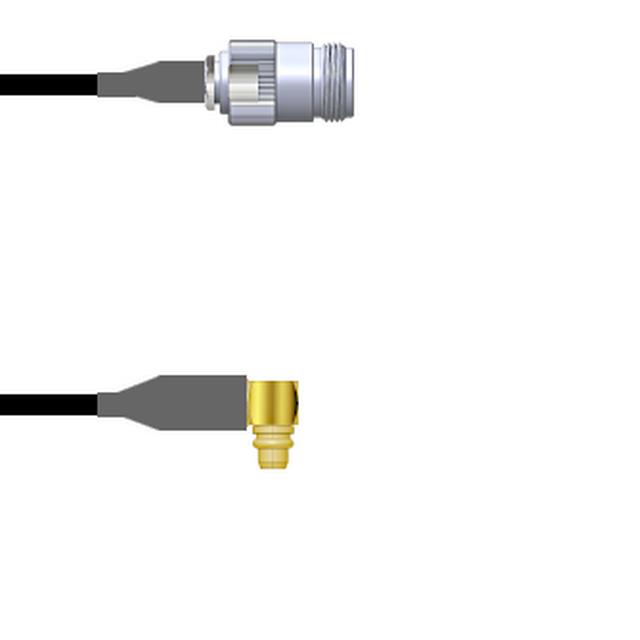

CBL ASSY MMCX-NTYPE PLUG-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2001N0003108i

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE PLUG-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2001N0003108i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-2001N0 Series

Part	2nd Connector Mounting Type	Frequency - Max [Max]	Cable Type	Overall Impedance	Length	Length	Length	Features	1st Contact Gender	2nd Connector	Color	Style	1st Connector Mounting Type	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-2001N0003108i	Free Hanging (In-Line)	6000 MHz	RG-174	50 Ohms	2.7 m	9 ft	108 in	Shielded	Male	N-Type Jack	Black	MMCX to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2001N0003003M	Free Hanging (In-Line)	6000 MHz	RG-174	50 Ohms	3 m	9.8 '	118.1 in	Shielded	Male	N-Type Jack	Black	MMCX to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2001N00051.5M	Free Hanging (In-Line)	6000 MHz	RG-316	50 Ohms	1.5 m	4.9 ft	59.1 in	Shielded	Male	N-Type Jack	Copper	MMCX to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2001N0005.75M	Free Hanging (In-Line)	6000 MHz	RG-316	50 Ohms	750 mm		29.53 "	Shielded	Male	N-Type Jack	Copper	MMCX to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2001N00032.5M	Free Hanging (In-Line)	6000 MHz	RG-174	50 Ohms	2.5 m	8.2 '	98.4 in	Shielded	Male	N-Type Jack	Black	MMCX to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2001N0003.25M	Free Hanging (In-Line)	6000 MHz	RG-174	50 Ohms				Shielded	Male	N-Type Jack	Black	MMCX to N-Type	Free Hanging (In-Line)	Female	9.843 "	250 mm
Amphenol Custom Cable Q-2001N0003003i	Free Hanging (In-Line)	6000 MHz	RG-174	50 Ohms	76.2 mm		3 in	Shielded	Male	N-Type Jack	Black	MMCX to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2001N0003036i	Free Hanging (In-Line)	6000 MHz	RG-174	50 Ohms	91.44 cm		36 in	Shielded	Male	N-Type Jack	Black	MMCX to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2001N0003048i	Free Hanging (In-Line)	6000 MHz	RG-174	50 Ohms	1200 mm	4 ft	48 in	Shielded	Male	N-Type Jack	Black	MMCX to N-Type	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-2001N0005003i	Free Hanging (In-Line)	6000 MHz	RG-316	50 Ohms	76.2 mm		3 in	Shielded	Male	N-Type Jack	Copper	MMCX to N-Type	Free Hanging (In-Line)	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 80.50
		25	$ 78.92
		50	$ 77.35
		100	$ 75.77
		250	$ 74.19

Description

General part information

Q-2001N0 Series

Cable Assembly Coaxial MMCX to N-Type RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
