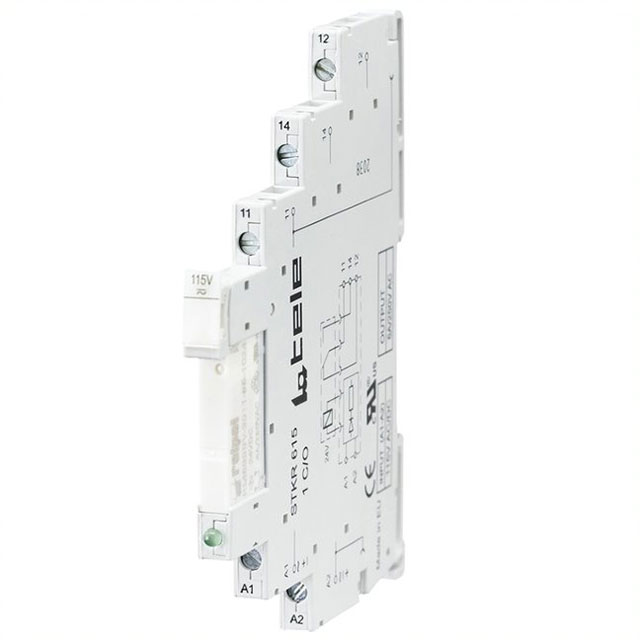

STKR 615

Active

TELE Controls Inc

RELAY GEN PURPOSE SPDT 6A 115V

Search across all available documentation for this part.

Active

TELE Controls Inc

RELAY GEN PURPOSE SPDT 6A 115V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPDT 6A 115V

Part	Must Release Voltage	Termination Style	Switching Voltage [Max]	Must Operate Voltage	Operate Time	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Contact Rating (Current)	Coil Type	Contact Form	Mounting Type	Relay Type
TELE Controls Inc STKR 615	22 VAC	Screw Terminal	400 VAC	92 VAC	8 ms	10 ms	-40 °C	55 °C	115 VAC	6 A	Non Latching	SPDT (1 Form C)	DIN Rail	General Purpose
TELE Controls Inc STKR 524	4.8 VAC	Screw Terminal	400 VAC	19.2 VAC	8 ms	10 ms	-40 °C	55 °C	24 VAC	6 A	Non Latching	SPDT (1 Form C)	DIN Rail	General Purpose
TELE Controls Inc STKR 024	2.4 VAC/DC	Screw Terminal	400 VAC	19.2 VAC	8 ms	10 ms	-40 °C	60 °C	24 VAC	6 A	Non Latching	SPDT (1 Form C)	DIN Rail	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 115VAC Coil DIN Rail

Technical documentation and resources
