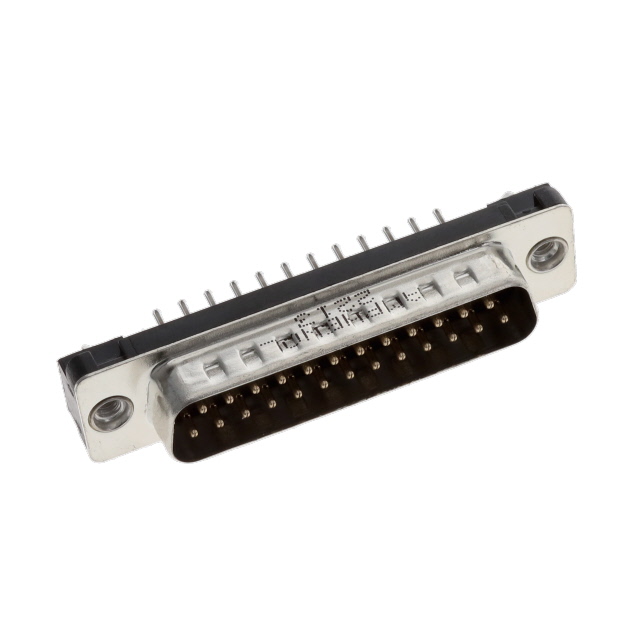

L717TSBH25POL2RM5

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 25POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 25POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	L717TSBH25POL2RM5

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	600 V

Part	Current Rating (Amps)	Contact Material	Number of Rows	Voltage Rating	Connector Type	Connector Style	Contact Form	Contact Type	Contact Finish Thickness	Material Flammability Rating	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Features	Flange Feature	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L717TSBH25POL2RM5	5 A	Copper Alloy	2	600 V	Male Pins Plug	D-Sub	Stamped	Signal	Flash	UL94 V-0	Solder	B DB	3	-55 °C	125 °C	Thermoplastic Glass Filled	Board Lock Grounding Indents	4-40 Board Side	Gold	Through Hole
Amphenol ICC (Commercial Products) L717TSBH25POL2RM5C309	5 A	Copper Alloy	2	600 V	Male Pins Plug	D-Sub	Stamped	Signal		UL94 V-0	Solder	B DB	3	-55 °C	125 °C	Thermoplastic Glass Filled	Board Lock Grounding Indents	4-40 Board Side	Gold	Through Hole	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717TSBH25POL2	5 A	Copper Alloy	2	600 V	Male Pins Plug	D-Sub	Stamped	Signal	Flash	UL94 V-0	Solder	B DB	3	-55 °C	125 °C	Thermoplastic Glass Filled	Grounding Indents	4-40 Board Side	Gold	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
