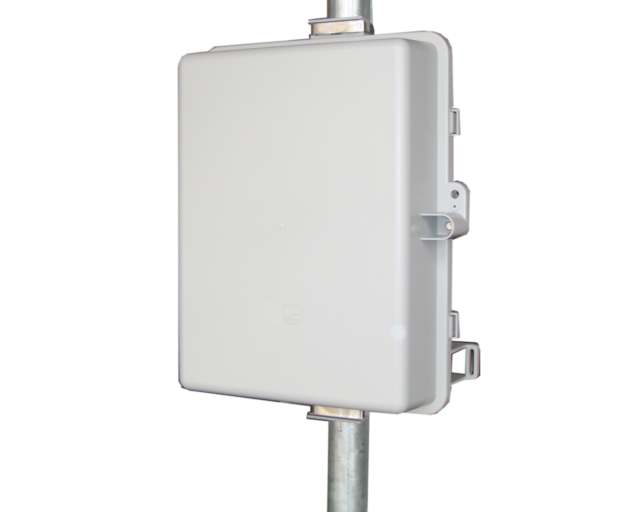

UPS-PL2424HP-18

Obsolete

Tycon Systems Inc.

UPSPRO, 60W 430VA POLYCARBONATE

Search across all available documentation for this part.

Obsolete

Tycon Systems Inc.

UPSPRO, 60W 430VA POLYCARBONATE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

UPSPRO, 60W 430VA POLYCARBONATE

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	UPS-PL2424HP-18	UPS-PL24 Series

Applications	Industrial Control, General Purpose	Industrial Control, General Purpose
Form	Chassis Mount	Chassis Mount
Height [z]	5.984 in	5.984 in
Height [z]	152 mm	152 mm
Power - Rated	60 W	60 W
Size / Dimension [x]	17.52 in	17.52 in
Size / Dimension [x]	445 mm	445 mm
Size / Dimension [y]	12.52 in	12.52 in
Size / Dimension [y]	318 mm	318 mm
Type	Standby (No Regulation)	Standby (No Regulation)
Voltage - Input	57 V	57 V
Voltage - Output	24 V	24 - 48 V

UPSPRO, 60W 430VA POLYCARBONATE

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input	Applications	Voltage - Output	Type	Power - Rated	Height [z]	Height [z]	Form
Tycon Systems Inc. UPS-PL2424HP-18	17.52 in	445 mm	12.52 in	318 mm	57 V	General Purpose, Industrial Control	24 V	Standby (No Regulation)	60 W	5.984 in	152 mm	Chassis Mount
Tycon Systems Inc. UPS-PL2448HP-18	17.52 in	445 mm	12.52 in	318 mm	57 V	General Purpose, Industrial Control	48 V	Standby (No Regulation)	60 W	5.984 in	152 mm	Chassis Mount
Tycon Systems Inc. UPS-PL2448HP-9	17.52 in	445 mm	12.52 in	318 mm	57 V	General Purpose, Industrial Control	48 V	Standby (No Regulation)	60 W	5.984 in	152 mm	Chassis Mount
Tycon Systems Inc. UPS-PL2424HP-9	17.52 in	445 mm	12.52 in	318 mm	57 V	General Purpose, Industrial Control	24 V	Standby (No Regulation)	60 W	5.984 in	152 mm	Chassis Mount
