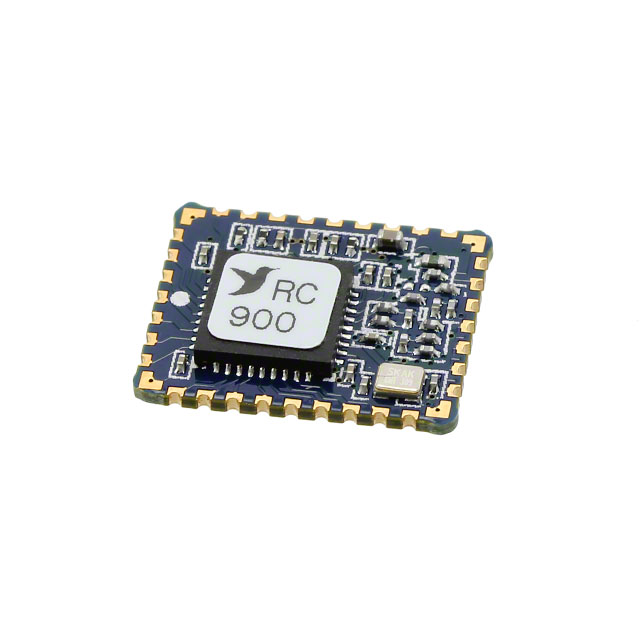

HUM-900-RC

Active

TE Connectivity Linx

RF TXRX MOD ISM<1GHZ CAST SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RF Module Overview Guide

HUM-900-RC

Active

TE Connectivity Linx

RF TXRX MOD ISM<1GHZ CAST SMD

Deep-Dive with AI

DocumentsDatasheet RF Module Overview Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HUM-900-RC

Antenna Type	Antenna Not Included, Castellation
Current - Receiving	25.5 mA
Current - Transmitting [Max]	36 mA
Current - Transmitting [Min]	22 mA
Frequency	900 MHz
Modulation	FSK, FHSS
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	32-SMD Module
Power - Output	9.5 dBm
RF Family/Standard	General ISM < 1GHz
Sensitivity	-98 dBm
Serial Interfaces	Parallel, UART
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2 V

HUM-900 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Serial Interfaces	Frequency	Modulation	Antenna Type	Sensitivity	Package / Case	Power - Output	Current - Transmitting [Min]	Current - Transmitting [Max]	Mounting Type	Current - Receiving	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Frequency [Min]	Frequency [Max]
TE Connectivity Linx HUM-900-RC-UFL	85 °C	-40 °C	General ISM < 1GHz	Parallel UART	900 MHz	FHSS FSK	Antenna Not Included U.FL	-98 dBm	27-SMD Module	9.5 dBm	22 mA	36 mA	Surface Mount	25.5 mA	3.6 V	2 V
TE Connectivity Linx HUM-900-RC	85 °C	-40 °C	General ISM < 1GHz	Parallel UART	900 MHz	FHSS FSK	Antenna Not Included Castellation	-98 dBm	32-SMD Module	9.5 dBm	22 mA	36 mA	Surface Mount	25.5 mA	3.6 V	2 V
TE Connectivity Linx HUM-900-PRC-CAS	85 °C	-40 °C	General ISM < 1GHz	UART		FHSS FSK	Antenna Not Included Castellation	-101 dBm	32-SMD Module	9.5 dBm	22 mA	40.5 mA	Surface Mount	23.5 mA	3.6 V	2 V	115.2 kbps	902 MHz	928 MHz
TE Connectivity Linx HUM-900-DT	85 °C	-40 °C	General ISM < 1GHz	UART	900 MHz	FHSS MSK	Antenna Not Included Castellation	-101 dBm	32-SMD Module	9.5 dBm	20.5 mA	38 mA	Surface Mount	22 mA	3.6 V	2 V	115.2 kbps
TE Connectivity Linx HUM-900-PRC	85 °C	-40 °C	General ISM < 1GHz	UART		FHSS FSK	Antenna Not Included Castellation	-101 dBm	32-SMD Module	9.5 dBm	22 mA	40.5 mA	Surface Mount	23.5 mA	3.6 V	2 V	115.2 kbps	902 MHz	928 MHz
TE Connectivity Linx HUM-900-PRO	85 °C	-40 °C	General ISM < 1GHz	UART		FHSS FSK MSK	Antenna Not Included Castellation	-101 dBm	32-SMD Module	9.5 dBm	22 mA	40.5 mA	Surface Mount	23.5 mA	3.6 V	2 V	115.2 kbps	902 MHz	928 MHz
TE Connectivity Linx HUM-900-RC-CAS	85 °C	-40 °C	General ISM < 1GHz	Parallel UART	900 MHz	FHSS FSK	Antenna Not Included Castellation	-98 dBm	27-SMD Module	9.5 dBm	22 mA	36 mA	Surface Mount	25.5 mA	3.6 V	2 V
TE Connectivity Linx HUM-900-PRC-UFL	85 °C	-40 °C	General ISM < 1GHz	UART		FHSS FSK	Antenna Not Included U.FL	-101 dBm	32-SMD Module	9.5 dBm	22 mA	40.5 mA	Surface Mount	23.5 mA	3.6 V	2 V	115.2 kbps	902 MHz	928 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	128	$ 25.25

Description

General part information

HUM-900 Series

General ISM < 1GHz Proprietary Transceiver Module 900MHz Antenna Not Included, Castellation Surface Mount
