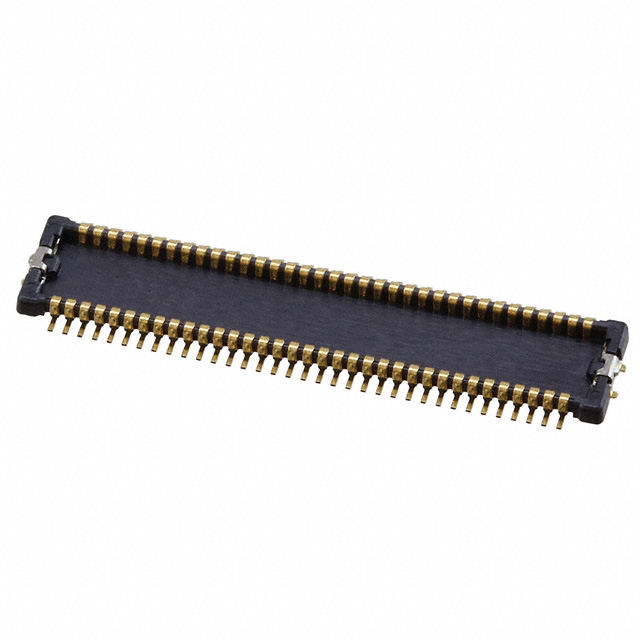

AXK8L70125BG

Active

Panasonic Electric Works

CONN HDR 70POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 70POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK8L70125BG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.63 mm
Height Above Board	0.025 in
Mated Stacking Heights	0.9 mm
Mounting Type	Surface Mount
Number of Positions	70
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Features	Height Above Board	Height Above Board	Contact Finish	Mated Stacking Heights	Connector Type	Number of Rows	Number of Positions	Mounting Type
Panasonic Electric Works AXK8L70125BG	0.016 in	0.4 mm	Solder Retention	0.63 mm	0.025 in	Gold	0.9 mm	Header Outer Shroud Contacts	2	70	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 3.92

General part information

70 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
