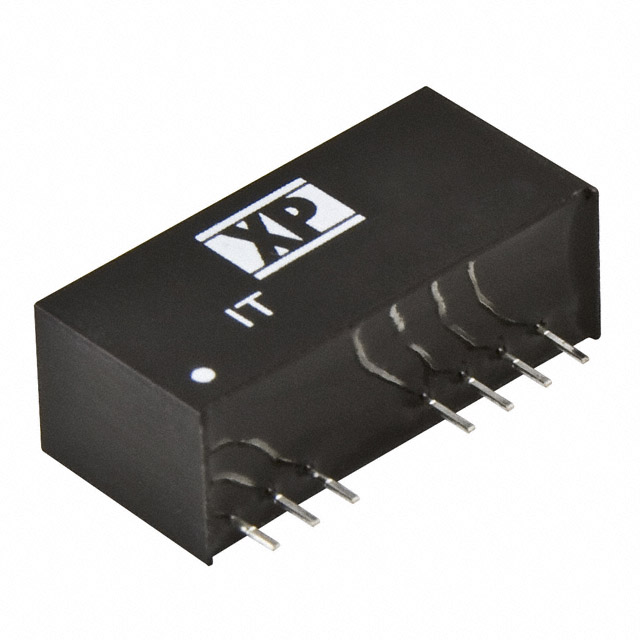

IT4815SA

Active

XP POWER

DC DC CONVERTER 15V 3W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 15V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Control Features	Voltage - Input (Min) [Min]	Package / Case	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Standard Number	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Output 1	Voltage - Isolation	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Features	Voltage - Output 2
XP POWER IT4815SA	Active Low Enable	18 V	9-SIP Module 7 Leads	1	Through Hole	100 °C	-40 °C	ITE (Commercial)	62368-1	Isolated Module	200 mA	75 V	15 V	1.5 kV	84 %	9.2 mm	0.49 in	26 mm	1.02 in	0.36 "	12.5 mm	3 W	Remote On/Off SCP
XP POWER IT4815S	Active Low Enable	18 V	9-SIP Module 7 Leads	2	Through Hole	100 °C	-40 °C	ITE (Commercial)	62368-1	Isolated Module	100 mA	75 V	15 V	1.5 kV	83 %	9.2 mm	0.49 in	26 mm	1.02 in	0.36 "	12.5 mm	3 W	Remote On/Off SCP	-15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 20.68

General part information

Isolated Module DC DC Converter 1 Output 15V 200mA 18V - 75V Input
