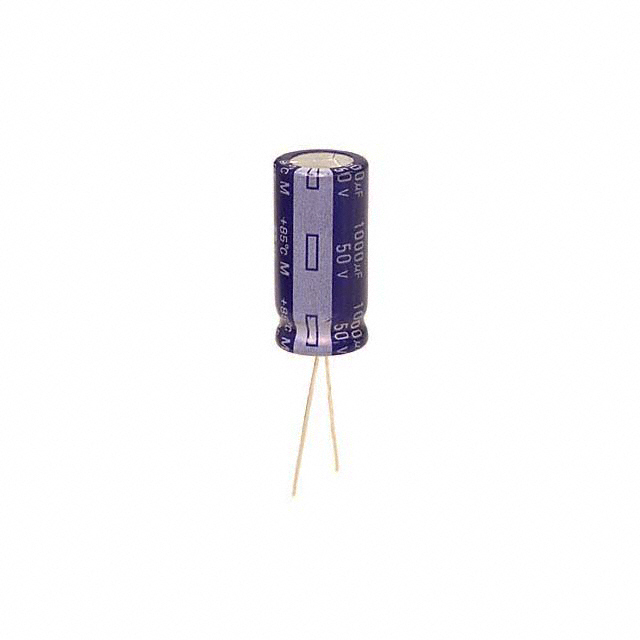

ECA-1HM102

Active

Panasonic Industrial Automation Sales

CAP ALUM 1000UF 20% 50V RADIAL

Deep-Dive with AI

DocumentsECA-xxM Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-1HM102

Applications	General Purpose
Capacitance	1000 µF
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.785 A
Ripple Current @ Low Frequency	1.05 A
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Tolerance	20 %
Voltage - Rated	50 VDC

ECA-1HM Series

Part	Voltage - Rated	Lead Spacing	Lead Spacing	Mounting Type	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Ripple Current @ Low Frequency	Polarization	Lifetime @ Temp.	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Ripple Current @ High Frequency	Height - Seated (Max)
Panasonic Industrial Automation Sales ECA-1HM3R3B	50 VDC	5 mm	0.197 in	Through Hole	3.3 µF	12 mm	0.472 "	20 %	35 mA	Polar	2000 Hrs	Radial Can	85 °C	-40 °C	5 mm	0.197 "	General Purpose	59.5 mA
Panasonic Industrial Automation Sales ECA-1HM010I	50 VDC	2.5 mm	0.098 in	Through Hole	1 µF	12 mm	0.472 "	20 %	10 mA	Polar	2000 Hrs	Radial Can	85 °C	-40 °C	5 mm	0.197 "	General Purpose	17 mA
Panasonic Industrial Automation Sales ECA-1HM330I	50 VDC	2.5 mm	0.098 in	Through Hole	33 ÁF	12 mm	0.472 "	20 %	110 mA	Polar	2000 Hrs	Radial Can	85 °C	-40 °C	5 mm	0.197 "	General Purpose	187 mA
Panasonic Industrial Automation Sales ECA-1HM102	50 VDC	5 mm	0.197 in	Through Hole	1000 µF	27 mm	1.063 in	20 %	1.05 A	Polar	2000 Hrs	Radial Can	85 °C	-40 °C	12.5 mm	0.492 in	General Purpose	1.785 A
Panasonic Industrial Automation Sales ECA-1HM4R7B	50 VDC	5 mm	0.197 in	Through Hole	4.7 µF	12 mm	0.472 "	20 %	45 mA	Polar	2000 Hrs	Radial Can	85 °C	-40 °C	5 mm	0.197 "	General Purpose	76.5 mA
Panasonic Industrial Automation Sales ECA-1HM331B	50 VDC	5 mm	0.197 in	Through Hole	330 µF	17 mm	0.669 in	20 %	500 mA	Polar	2000 Hrs	Radial Can	85 °C	-40 °C	10 mm	0.394 in	General Purpose	850 mA
Panasonic Industrial Automation Sales ECA-1HM3R3	50 VDC	2 mm	0.079 in	Through Hole	3.3 µF	12 mm	0.472 "	20 %	35 mA	Polar	2000 Hrs	Radial Can	85 °C	-40 °C	5 mm	0.197 "	General Purpose	59.5 mA
Panasonic Industrial Automation Sales ECA-1HM0R1I	50 VDC	2.5 mm	0.098 in	Through Hole	100000 pF	12 mm	0.472 "	20 %	1.3 mA	Polar	2000 Hrs	Radial Can	85 °C	-40 °C	5 mm	0.197 "	General Purpose	2.21 mA
Panasonic Industrial Automation Sales ECA-1HM2R2I	50 VDC	2.5 mm	0.098 in	Through Hole	2.2 µF	12 mm	0.472 "	20 %	20 mA	Polar	2000 Hrs	Radial Can	85 °C	-40 °C	5 mm	0.197 "	General Purpose	34 mA
Panasonic Industrial Automation Sales ECA-1HM221	50 VDC	5 mm	0.197 in	Through Hole	220 µF		0.531 "	20 %	400 mA	Polar	2000 Hrs	Radial Can	85 °C	-40 °C	10 mm	0.394 in	General Purpose	680 mA	13.5 mm
