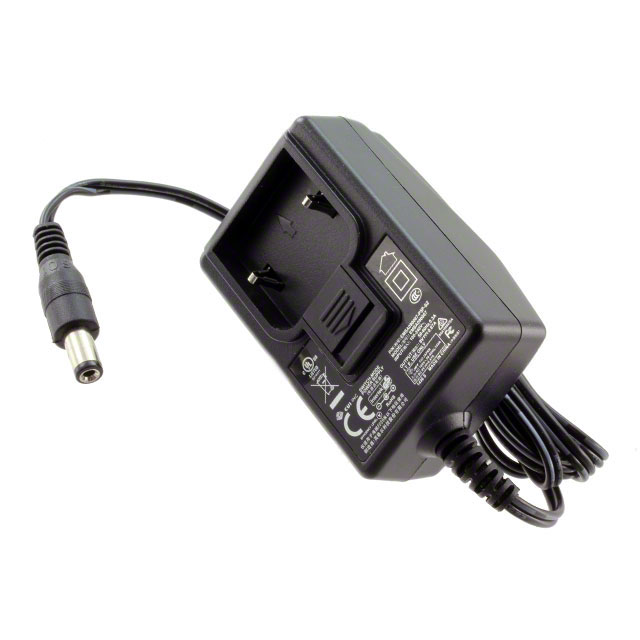

SMI6-12-K-P5R

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 12V 6W

Deep-Dive with AI

Search across all available documentation for this part.

SMI6-12-K-P5R

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 12V 6W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMI6-12-K-P5R

Applications	ITE (Commercial)
Approval Agency	SIQ, CSA, FCC, RCM, IEC, TUV, UL, EN, EAC, CCC, KC, CB Scheme
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	500 mA
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug R/A
Output Connector [x]	2.1 mm
Output Connector [y]	5.5 mm
Output Connector [z]	9.5 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	International
Size / Dimension [x]	2.52 in
Size / Dimension [x]	64 mm
Size / Dimension [y]	1.59 "
Size / Dimension [y]	40.5 mm
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Standard Number	60950-1, 61204-3, 55024, C22.2 No. 60950-1, 62368-1, 61000-3-2, 55032 Class B, 61000-3-3
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V
Weight	69.4 g
Weight	0.153 lb

SMI6-12 Series

Part	Weight	Weight	Form	Applications	Power (Watts)	Cord Length	Cord Length	No Load Power Consumption	Operating Temperature [Max]	Region Utilized	Standard Number	Voltage - Output	Input Connector	Current - Output (Max) [Max]	Polarization	Input Type	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Output Connector [z]	Output Connector [y]	Output Connector	Output Connector [x]	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector [diameter]
CUI Inc. SMI6-12-K-P5R	69.4 g	0.153 lb	Wall Mount (Class II)	ITE (Commercial)	6 W	60.2 in	1.53 m	100 mW	40 °C	International	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 62368-1 C22.2 No. 60950-1	12 V	Multi-Blade	500 mA	Positive Center	Multi-Blade (Sold Separately)	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	30 mm	1.59 "	2.52 in	64 mm	40.5 mm	1.18 in	9.5 mm	5.5 mm	Barrel Plug R/A	2.1 mm	CoC Tier 2 Level VI	90 VAC	264 VAC
CUI Inc. SMI6-12-V-P6	69.4 g	0.153 lb	Wall Mount (Class II)	ITE (Commercial)	6 W	60.2 in	1.53 m	100 mW	40 °C	International	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 62368-1 C22.2 No. 60950-1	12 V	Multi-Blade	500 mA	Positive Center	Multi-Blade (Included)	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	30 mm	1.59 "	2.52 in	64 mm	40.5 mm	1.18 in			Barrel Plug	9.5 mm	CoC Tier 2 Level VI	90 VAC	264 VAC	2.5 mm 5.5 mm
CUI Inc. SMI6-12-K-P5	96.16 g	0.212 lb	Wall Mount (Class II)	ITE (Commercial)	6 W	60.2 in	1.53 m	100 mW	40 °C	International	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 62368-1 C22.2 No. 60950-1	12 V	Multi-Blade	500 mA	Positive Center	Multi-Blade (Sold Separately)	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	30 mm	1.59 "	2.52 in	64 mm	40.5 mm	1.18 in			Barrel Plug	9.5 mm	CoC Tier 2 Level VI	90 VAC	264 VAC	2.1 mm 5.5 mm
CUI Inc. SMI6-12-V-P5R	69.4 g	0.153 lb	Wall Mount (Class II)	ITE (Commercial)	6 W	60.2 in	1.53 m	100 mW	40 °C	International	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 62368-1 C22.2 No. 60950-1	12 V	Multi-Blade	500 mA	Positive Center	Multi-Blade (Included)	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	30 mm	1.59 "	2.52 in	64 mm	40.5 mm	1.18 in	9.5 mm	5.5 mm	Barrel Plug R/A	2.1 mm	CoC Tier 2 Level VI	90 VAC	264 VAC
CUI Inc. SMI6-12-K-P6	69.4 g	0.153 lb	Wall Mount (Class II)	ITE (Commercial)	6 W	60.2 in	1.53 m	100 mW	40 °C	International	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 62368-1 C22.2 No. 60950-1	12 V	Multi-Blade	500 mA	Positive Center	Multi-Blade (Sold Separately)	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	30 mm	1.59 "	2.52 in	64 mm	40.5 mm	1.18 in			Barrel Plug	9.5 mm	CoC Tier 2 Level VI	90 VAC	264 VAC	2.5 mm 5.5 mm
CUI Inc. SMI6-12-V-P5	69.4 g	0.153 lb	Wall Mount (Class II)	ITE (Commercial)	6 W	60.2 in	1.53 m	100 mW	40 °C	International	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 62368-1 C22.2 No. 60950-1	12 V	Multi-Blade	500 mA	Positive Center	Multi-Blade (Included)	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	30 mm	1.59 "	2.52 in	64 mm	40.5 mm	1.18 in			Barrel Plug	9.5 mm	CoC Tier 2 Level VI	90 VAC	264 VAC	2.1 mm 5.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SMI6-12 Series

12V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
