C14896_STRADA-2X2-PXL

Active

LEDiL

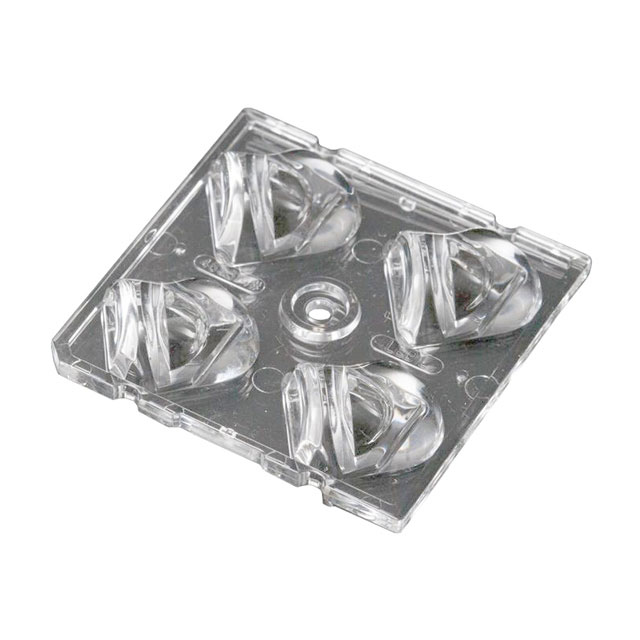

LENS RECTANG 4 POS 50 X 50MM (D) 8MM(H)/ FOAM TRAY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LEDiL

LENS RECTANG 4 POS 50 X 50MM (D) 8MM(H)/ FOAM TRAY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	C14896_STRADA-2X2-PXL

Color	Clear
For Use With/Related Manufacturer	Lumileds, Nichia, Samsung, Osram
Lens Size [x]	50 mm
Lens Size [y]	50 mm
Lens Style	Square with Multiple Top
Material	Acrylic
Mounting Type	Screw
Number of LEDs	4
Optical Pattern	Asymmetrical
Type	Lens

Part	Mounting Type	Type	Optical Pattern	Material	Color	Lens Style	For Use With/Related Manufacturer	Number of LEDs	Lens Size [x]	Lens Size [y]
LEDiL C14896_STRADA-2X2-PXL	Screw	Lens	Asymmetrical	Acrylic	Clear	Square with Multiple Top	Lumileds Nichia Osram Samsung	4	50 mm	50 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	160	$ 2.41
Newark	Each	1	$ 2.78
		800	$ 1.98

General part information

Lens Clear Asymmetrical Screw

Technical documentation and resources
