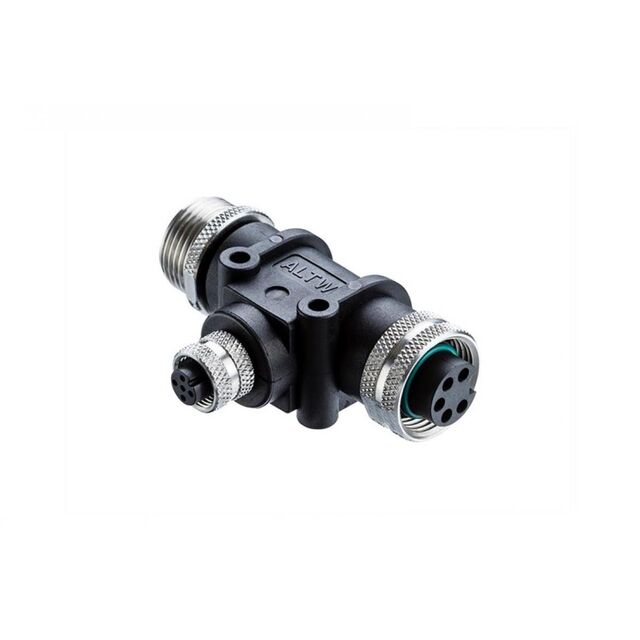

NC-050505-FMF-TS001

Active

Amphenol LTW

NMEA 2000, T ADAPTOR, METAL, 4A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, SCREW THREAD, (END 1) FEMALE FEMALE, (END 2) MALE MA

Search across all available documentation for this part.

Active

Amphenol LTW

NMEA 2000, T ADAPTOR, METAL, 4A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, SCREW THREAD, (END 1) FEMALE FEMALE, (END 2) MALE MA

Technical Specifications

Parameters and characteristics for this part

Specification	NC-050505-FMF-TS001

Connector Style	Distributor T-Shaped
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Female Sockets (1), Male Pins (1)
Current Rating (Amps)	4 A
Features	Coupling Nut
Housing Color	Black
Housing Material	Polyurethane
Housing Material	PUR
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	5
Number of Positions (Convert To)	5
Number of Positions (Convert To)	2
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Shielding	Unshielded
Voltage Rating	60 VDC

Part	Convert From (Adapter End)	Orientation (Convert From)	Features	Voltage Rating	Convert To (Adapter End)	Ingress Protection	Housing Color	Current Rating (Amps)	Mounting Type	Connector Style	Number of Positions (Convert To)	Number of Positions (Convert To)	Housing Material	Housing Material	Shielding	Orientation (Convert To)	Number of Positions (Convert From)
Amphenol LTW NC-050505-FMF-TS001	Female Sockets	Keyed	Coupling Nut	60 VDC	Female Sockets (1) Male Pins (1)	IP67 - Dust Tight Waterproof	Black	4 A	Free Hanging (In-Line)	Distributor T-Shaped	5	2	Polyurethane	PUR	Unshielded	Keyed	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Connector Distributor T-Shaped 5/5 (2) Female Sockets/Female Sockets (1), Male Pins (1) Free Hanging (In-Line)

Technical documentation and resources

No documents available
