Q-2I05A0005036i

Active

Amphenol Custom Cable

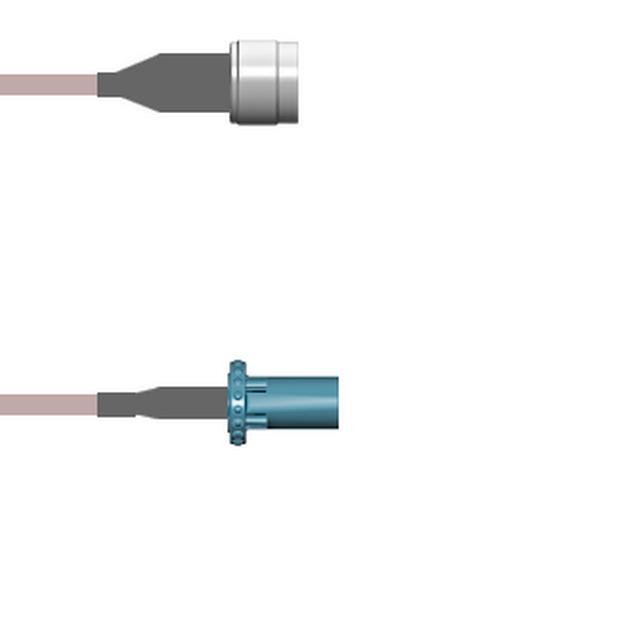

CBL ASSY NTYPE-FAKRA PLG-PLG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I05A0005036i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA PLG-PLG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I05A0005036i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Fakra Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-2I05A0 Series

Part	Cable Type	Length	Length	2nd Connector Mounting Type	Style	Overall Impedance	1st Connector Mounting Type	1st Contact Gender	2nd Contact Gender	Frequency - Max [Max]	2nd Connector	Color	Features	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2I05A0005036i	RG-316	91.44 cm	36 in	Free Hanging (In-Line)	N-Type to Fakra	50 Ohms	Free Hanging (In-Line)	Male	Male	3 GHz	Fakra Plug	Copper	Shielded
Amphenol Custom Cable Q-2I05A00032.5M	RG-174	2.5 m	98.4 in	Free Hanging (In-Line)	N-Type to Fakra	50 Ohms	Free Hanging (In-Line)	Male	Male	3 GHz	Fakra Plug	Black	Shielded	8.2 '
Amphenol Custom Cable Q-2I05A0005.75M	RG-316	750 mm	29.53 "	Free Hanging (In-Line)	N-Type to Fakra	50 Ohms	Free Hanging (In-Line)	Male	Male	3 GHz	Fakra Plug	Copper	Shielded
Amphenol Custom Cable Q-2I05A0003084i	RG-174	2.1 m	84 in	Free Hanging (In-Line)	N-Type to Fakra	50 Ohms	Free Hanging (In-Line)	Male	Male	3 GHz	Fakra Plug	Black	Shielded	7 ft
Amphenol Custom Cable Q-2I05A0003036i	RG-174	91.44 cm	36 in	Free Hanging (In-Line)	N-Type to Fakra	50 Ohms	Free Hanging (In-Line)	Male	Male	3 GHz	Fakra Plug	Black	Shielded
Amphenol Custom Cable Q-2I05A0003048i	RG-174	1200 mm	48 in	Free Hanging (In-Line)	N-Type to Fakra	50 Ohms	Free Hanging (In-Line)	Male	Male	3 GHz	Fakra Plug	Black	Shielded	4 ft
Amphenol Custom Cable Q-2I05A0003012i	RG-174	304.8 mm	12 "	Free Hanging (In-Line)	N-Type to Fakra	50 Ohms	Free Hanging (In-Line)	Male	Male	3 GHz	Fakra Plug	Black	Shielded
Amphenol Custom Cable Q-2I05A0005.25M	RG-316			Free Hanging (In-Line)	N-Type to Fakra	50 Ohms	Free Hanging (In-Line)	Male	Male	3 GHz	Fakra Plug	Copper	Shielded		9.843 "	250 mm
Amphenol Custom Cable Q-2I05A0005009i	RG-316	228.6 mm	9 "	Free Hanging (In-Line)	N-Type to Fakra	50 Ohms	Free Hanging (In-Line)	Male	Male	3 GHz	Fakra Plug	Copper	Shielded
Amphenol Custom Cable Q-2I05A0005001M	RG-316	1 m	39.4 in	Free Hanging (In-Line)	N-Type to Fakra	50 Ohms	Free Hanging (In-Line)	Male	Male	3 GHz	Fakra Plug	Copper	Shielded	3.3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 89.03
		25	$ 87.29
		50	$ 85.55
		100	$ 83.80
		250	$ 82.06

Description

General part information

Q-2I05A0 Series

Cable Assembly Coaxial N-Type to Fakra RG-316 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
