Specification	RT071619PNHEC03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cap (Cover)
Housing Color	Silver
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	19
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert (Maximum)	19
Shell Size - Insert (Minimum)	16 S
Shielding	Shielded
Type	For Male Pins

RT071619 Series

Part	Connector Type	Type	Fastening Type	Mounting Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shell Material	Contact Size	Shell Finish	Ingress Protection Description	Ingress Protection IP Rating	Material Flammability Rating	Features	Insert Material	Orientation	Mounting Feature	Contact Type	Contact Shape	Note	Housing Color	Includes Total Count	Includes	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Number of Positions	Primary Material	Voltage Rating	Voltage Rating (Type)	Contact Finish - Mating	Termination	Color	Current Rating	Contact Finish Thickness - Mating
McGill Microwave Systems RT071619SNHEC	Receptacle Housing	For Female Sockets	Bayonet Lock	Panel Mount	19	16 S	Zinc Alloy	16 S	Nickel	Dust Tight Waterproof	IP67	UL94 V-0	Backshell	Thermoplastic	N (Normal)	Bulkhead Front Side Nut	Crimp	Circular	Contacts Not Included	Silver	3 pcs	Connector Nut O-Ring	-40 °C	105 °C	Shielded	19

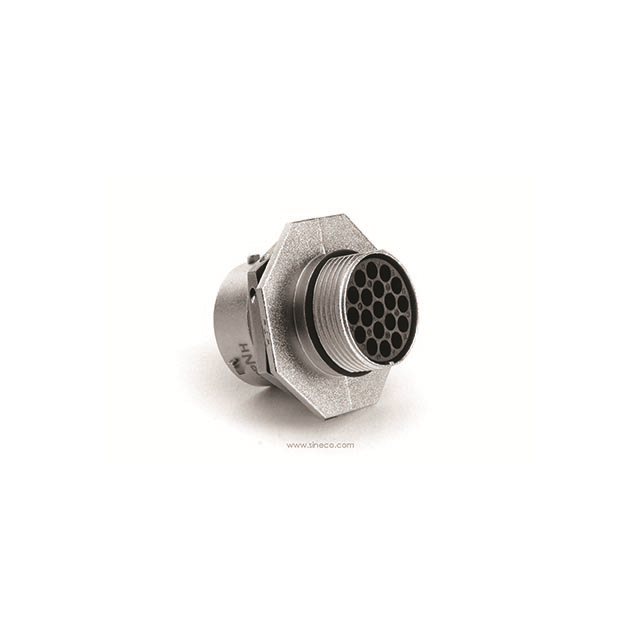

McGill Microwave Systems RT071619PNH03	Receptacle Housing	For Male Pins	Bayonet Lock	Panel Mount	19	16 S	Zinc Alloy	16 S	Nickel	Dust Tight Waterproof	IP67	UL94 V-0		Thermoplastic	N (Normal)	Bulkhead Front Side Nut	Crimp	Circular	Contacts Not Included	Silver	4 pcs	Connector Gasket Nut O-Ring	-40 °C	125 °C	Shielded	19

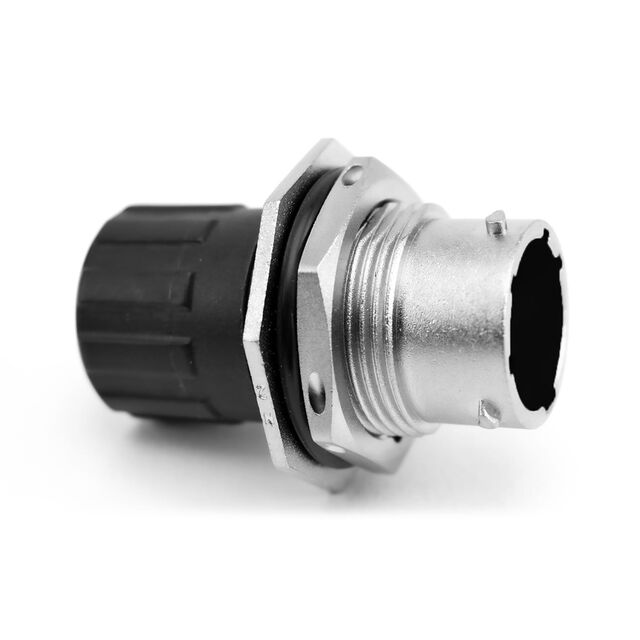

McGill Microwave Systems RT071619PNHEC03	Receptacle Housing	For Male Pins	Bayonet Lock	Panel Mount	19	16 S	Zinc Alloy	16 S	Nickel	Dust Tight Waterproof	IP67	UL94 V-0	Cap (Cover)	Thermoplastic	N (Normal)	Bulkhead Front Side Nut	Crimp	Circular	Contacts Not Included	Silver			-40 °C	125 °C	Shielded	19	Metal
McGill Microwave Systems RT071619PNHECR	Receptacle Housing	For Male Pins	Bayonet Lock	Free Hanging (In-Line) Panel Mount	19	16 S	Zinc Alloy	16 S	Nickel	Dust Tight Water Resistant Waterproof	IP67 IP69K	UL94 V-0	Backshell		N (Normal)	Bulkhead Front Side Nut	Crimp			Silver					Shielded	19	Metal

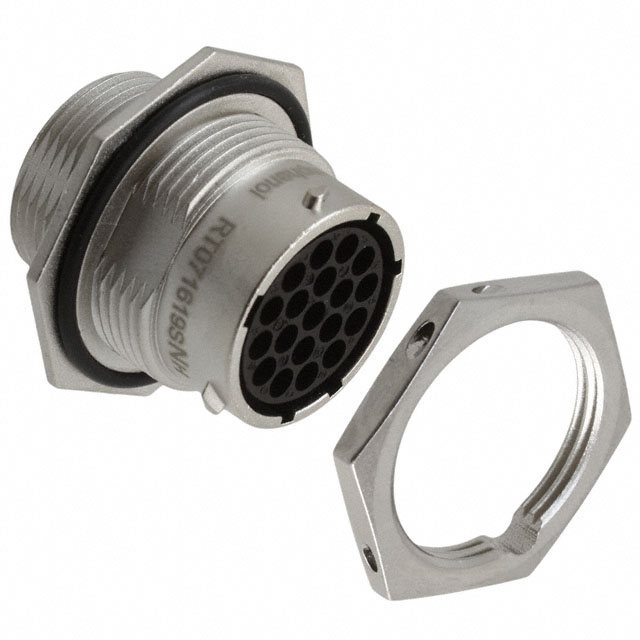

McGill Microwave Systems RT071619SNH	Receptacle Housing	For Female Sockets	Bayonet Lock	Panel Mount	19	16 S	Zinc Alloy	16 S	Nickel	Dust Tight Waterproof	IP67	UL94 V-0		Thermoplastic	N (Normal)	Bulkhead Front Side Nut	Crimp	Circular	Contacts Not Included	Silver			-40 °C	105 °C	Shielded	19

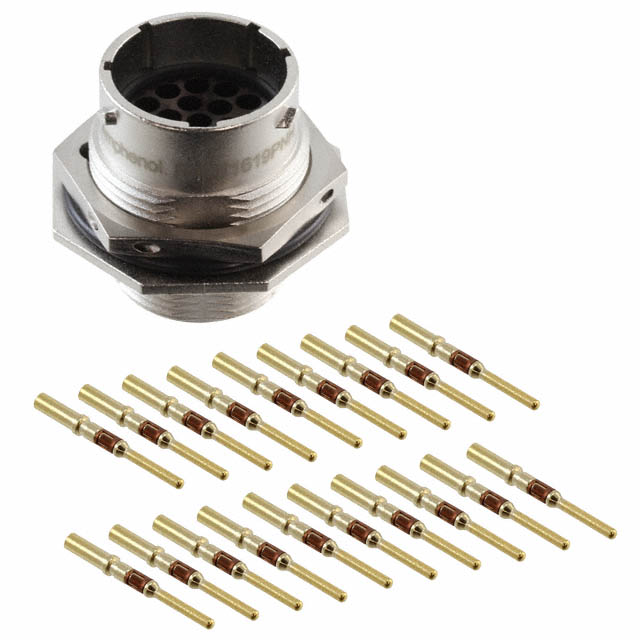

McGill Microwave Systems RT071619PNH-K	Male Pins Receptacle		Bayonet Lock	Panel Mount	19	16 S	Zinc Die Cast		Nickel	Dust Tight Waterproof	IP67				N (Normal)	Bulkhead Front Side Nut							-40 °C	105 °C		19	Metal	250 V	DC	Gold	Crimp	Silver	13 A	Flash
