AWL254-DG-Z28D

Active

Assmann WSW Components

PIN- & FEMALE HEADER MALE THT 2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

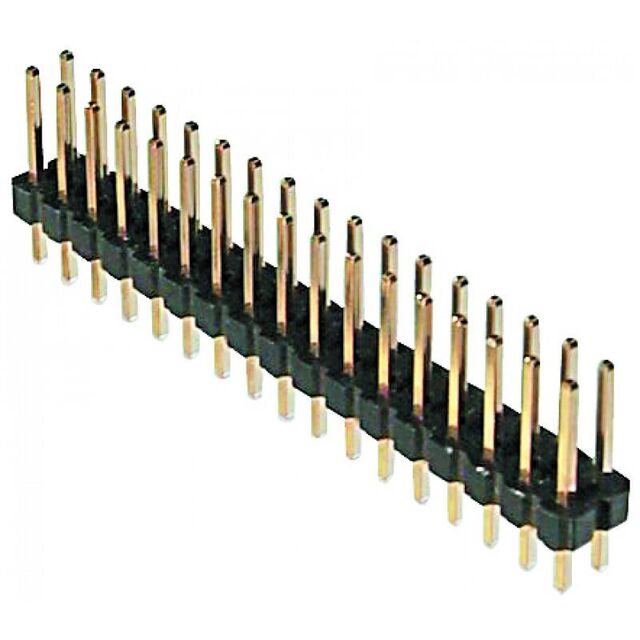

AWL254-DG-Z28D

Active

Assmann WSW Components

PIN- & FEMALE HEADER MALE THT 2

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AWL254-DG-Z28D

Connector Type	Cuttable, Header
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.453 in
Overall Contact Length	11.5 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

AWL254 Series

Part	Current Rating (Amps)	Fastening Type	Number of Positions Loaded	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Shrouding	Number of Rows	Insulation Color	Material Flammability Rating	Termination	Contact Finish - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Connector Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Type	Contact Material	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length
Assmann WSW Components AWL254-DA-G08D	3 A	Push-Pull	All	0.197 in	5 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole Right Angle	Unshrouded	2	Black	UL94 V-0	Solder	Gold	8	0.118 in	3 mm	Cuttable Header	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	6 mm	0.236 in	Square	Male Pin	Brass
Assmann WSW Components AWL254-DG-Z28D	3 A	Push-Pull	All			0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole		2	Black	UL94 V-0	Solder		28	0.118 in	3 mm	Cuttable Header	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	6 mm	0.236 in	Square	Male Pin	Brass	0.098 in	2.5 mm	0.453 in	11.5 mm
Assmann WSW Components AWL254-DA-G72D	3 A	Push-Pull	All	0.197 in	5 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole Right Angle	Unshrouded	2	Black	UL94 V-0	Solder	Gold	72	0.118 in	3 mm	Cuttable Header	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	6 mm	0.236 in	Square	Male Pin	Brass
Assmann WSW Components AWL254-DA-G42D	3 A	Push-Pull	All	0.197 in	5 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole Right Angle	Unshrouded	2	Black	UL94 V-0	Solder	Gold	42	0.118 in	3 mm	Cuttable Header	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	6 mm	0.236 in	Square	Male Pin	Brass
Assmann WSW Components AWL254-DG-G38D	3 A	Push-Pull	All			0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	Unshrouded	2	Black	UL94 V-0	Solder	Gold	38	0.118 in	3 mm	Cuttable Header	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	6 mm	0.236 in	Square	Male Pin	Brass	0.098 in	2.5 mm	0.453 in	11.5 mm
Assmann WSW Components AWL254-DG-G66A	3 A	Push-Pull	All			0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	Unshrouded	2	Black	UL94 V-0	Solder	Gold	66	0.118 in	3 mm	Cuttable Header	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	7 mm	0.276 in	Square	Male Pin	Brass	0.098 in	2.5 mm	0.492 in	12.5 mm
Assmann WSW Components AWL254-DG-Z46D	3 A	Push-Pull	All			0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	Unshrouded	2	Black	UL94 V-0	Solder		46	0.118 in	3 mm	Cuttable Header	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	6 mm	0.236 in	Square	Male Pin	Brass	0.098 in	2.5 mm	0.354 in	9 mm
Assmann WSW Components AWL254-DG-G06A	3 A	Push-Pull	All			0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	Unshrouded	2	Black	UL94 V-0	Solder	Gold	6	0.118 in	3 mm	Cuttable Header	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	7 mm	0.276 in	Square	Male Pin	Brass	0.098 in	2.5 mm	0.492 in	12.5 mm
Assmann WSW Components AWL254-DG-G48A	3 A	Push-Pull	All			0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	Unshrouded	2	Black	UL94 V-0	Solder	Gold	48	0.118 in	3 mm	Cuttable Header	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	7 mm	0.276 in	Square	Male Pin	Brass	0.098 in	2.5 mm	0.492 in	12.5 mm
Assmann WSW Components AWL254-DA-G62D	3 A	Push-Pull	All	0.197 in	5 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole Right Angle	Unshrouded	2	Black	UL94 V-0	Solder	Gold	62	0.118 in	3 mm	Cuttable Header	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	6 mm	0.236 in	Square	Male Pin	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	4800	$ 0.36

Description

General part information

AWL254 Series

Connector Header Through Hole 28 position 0.100" (2.54mm)
