73403W 008100
ActiveBelden Inc.

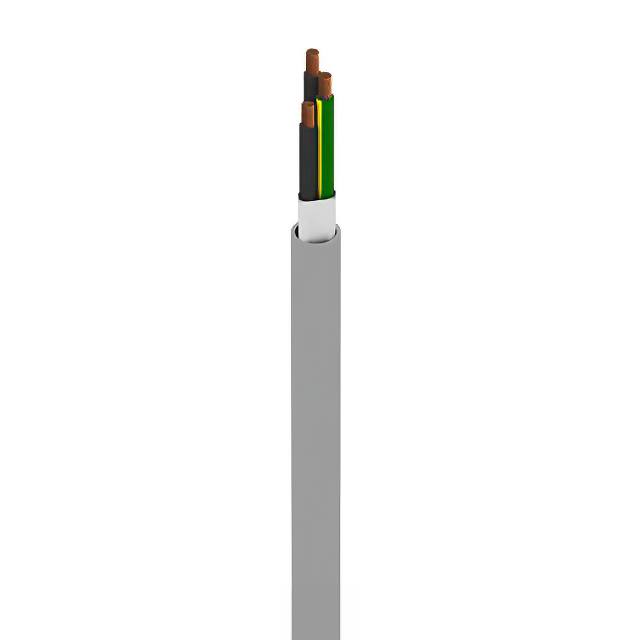

CABLE 3COND 14AWG GRAY
Deep-Dive with AI
Search across all available documentation for this part.
73403W 008100
ActiveBelden Inc.
CABLE 3COND 14AWG GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 73403W 008100 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 41 |
| Conductor Strand [custom] | 30 AWG |
| Features | Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 8.92 mm |
| Jacket (Insulation) Diameter [diameter] | 0.351 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 1.143 mm |
| Jacket (Insulation) Thickness | 0.045 in |
| Jacket Color | Gray |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 3 |
| Ratings | UL Style 2587 |
| Voltage | 600 V |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 100 | $ 2.25 | |
| 200 | $ 2.14 | |||
| 300 | $ 2.07 | |||
| 500 | $ 2.00 | |||
| 700 | $ 1.95 | |||
| 1000 | $ 1.90 | |||
| 2500 | $ 1.77 | |||
| 5000 | $ 1.70 | |||
Description
General part information
73403W Series
3 Conductor Multi-Conductor Cable Gray 14 AWG 100.0' (30.5m)
