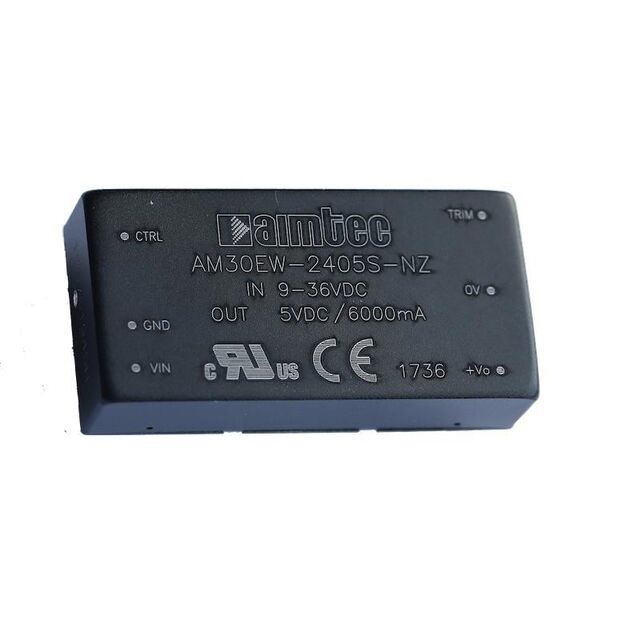

AM30EW-2412S-NZ-K-ST

Active

aimtec

DC/DC CONVERTER 12V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM30EW-2412S-NZ-K-ST

Active

aimtec

DC/DC CONVERTER 12V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM30EW-2412S-NZ-K-ST

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max) [Max]	2.5 A
Efficiency	90 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Power (Watts)	30 W
Size / Dimension [x]	75.9 mm
Size / Dimension [x]	2.99 in
Size / Dimension [y]	1.24 in
Size / Dimension [y]	31.5 mm
Size / Dimension [z]	25.4 mm
Size / Dimension [z]	1 "
Standard Number	60950-1
Type	Enclosed
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

AM30E Series

Part	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Isolation	Mounting Type	Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Standard Number	Efficiency	Number of Outputs	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 2	Current - Output (Max)	Features	Current - Output (Max)	Current - Output (Max)	Voltage - Output 3	Package / Case
aimtec AM30EW-2412S-NZ-K-ST	30 W	36 V	1.5 kV	Chassis Mount	Enclosed	12 V	75.9 mm	1.24 in	25.4 mm	1 "	31.5 mm	2.99 in	CE cURus	2.5 A	-40 °C	80 ¯C	ITE (Commercial)	60950-1	90 %	1	9 V
aimtec AM30E-2412DZ	30 W	36 V	1.6 kV	Through Hole	Isolated Module		50.8 mm	25.4 mm		0.4 "		2 in	CE		-40 °C	75 ░C	ITE (Commercial)		91 %	2	18 V	10.2 mm	25.4 mm	12 V	-12 V	-12 V	1.25 A	Adjustable Output Remote On/Off
aimtec AM30EW-2412D-NZ	30 W	36 V	1.5 kV	Through Hole	Isolated Module		50.8 mm	25.4 mm		0.46 in		2 in	CE cURus		-40 °C	80 C	ITE (Commercial)		89 %	2	9 V	11.8 mm	25.4 mm	12 V	-12 V	-12 V	1.25 A	Remote On/Off
aimtec AM30EW-4815D-NZ	30 W	75 V	1.5 kV	Through Hole	Isolated Module		50.8 mm	25.4 mm		0.47 "		2 in	CE cURus		-40 °C	80 C	ITE (Commercial)		88 %	2	18 V	11.8 mm	25.4 mm	15 V	-15 V	-15 V	1 A	Remote On/Off	1 A
aimtec AM30EW-240515TZ	30 W	36 V	1.6 kV	Through Hole	Isolated Module		50.8 mm	25.4 mm		0.4 "		2 in	CE		-40 °C	75 ░C	ITE (Commercial)		90 %	3	9 V	10.2 mm	25.4 mm	15 V	-15 V	15 V	4 A	Remote On/Off	330 mA	330 mA	-15 V
aimtec AM30EW-2424S-NZ-ST	30 W	36 V	1.5 kV	Chassis Mount	Enclosed	24 V	75.9 mm	1.24 in		0.84 "		2.99 in	CE cURus	1.25 A	-40 °C	80 ¯C	ITE (Commercial)	60950-1	90 %	1	9 V	21.3 mm	31.5 mm
aimtec AM30EW-4803S-NZ	20 W	75 V	1.5 kV	Through Hole	Isolated Module	3.3 V	50.8 mm	25.4 mm		0.46 in		2 in	CE cURus	6 A	-40 °C	80 ¯C	ITE (Commercial)		87 %	1	18 V	11.8 mm	25.4 mm									6-DIP Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AM30E Series

Enclosed DC DC Converter 1 Output 12V 2.5A 36V Input

Documents

Technical documentation and resources
