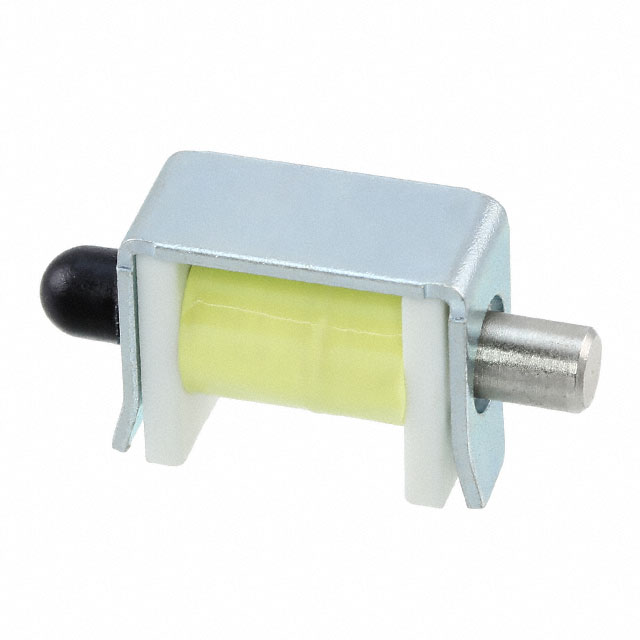

DSOS-0416-12D
ActiveDelta Electronics
DC SOLENOID, OPEN FRAME PUSH TYP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DSOS-0416-12D |
|---|---|
| DC Resistance (DCR) | 40 Ohm |
| Diameter - Shaft [diameter] | 4.19 mm |
| Diameter - Shaft [diameter] | 0.165 in |
| Duty Cycle | Intermittent |
| Mounting Type | Chassis Mount |
| Power (Watts) | 3.6 W |
| Shaft Detail | Round |
| Size / Dimension [x] | 15.8 mm |
| Size / Dimension [x] | 0.622 in |
| Size / Dimension [y] | 0.304 " |
| Size / Dimension [y] | 7.72 mm |
| Size / Dimension [z] | 9.98 mm |
| Size / Dimension [z] | 0.393 " |
| Stroke Length | 1.52 mm |
| Stroke Length | 0.06 in |
| Technology | Electromechanical |
| Type | Open Frame (Push) |
| Voltage - Rated | 12 VDC |
| Weight | 5.9 g |
| Weight | 0.013 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.24 | |
| 10 | $ 6.45 | |||
| 25 | $ 6.16 | |||
| 50 | $ 5.95 | |||
| 100 | $ 5.74 | |||
| 324 | $ 5.41 | |||
| 648 | $ 5.23 | |||
| 1296 | $ 5.05 | |||
Description
General part information
DSOS-0416 Series
Intermittent Duty Solenoid Open Frame (Push) Type 0.060" (1.52mm) Stroke 12VDC Chassis Mount
