1055047-1

Active

TE Connectivity AMP Connectors

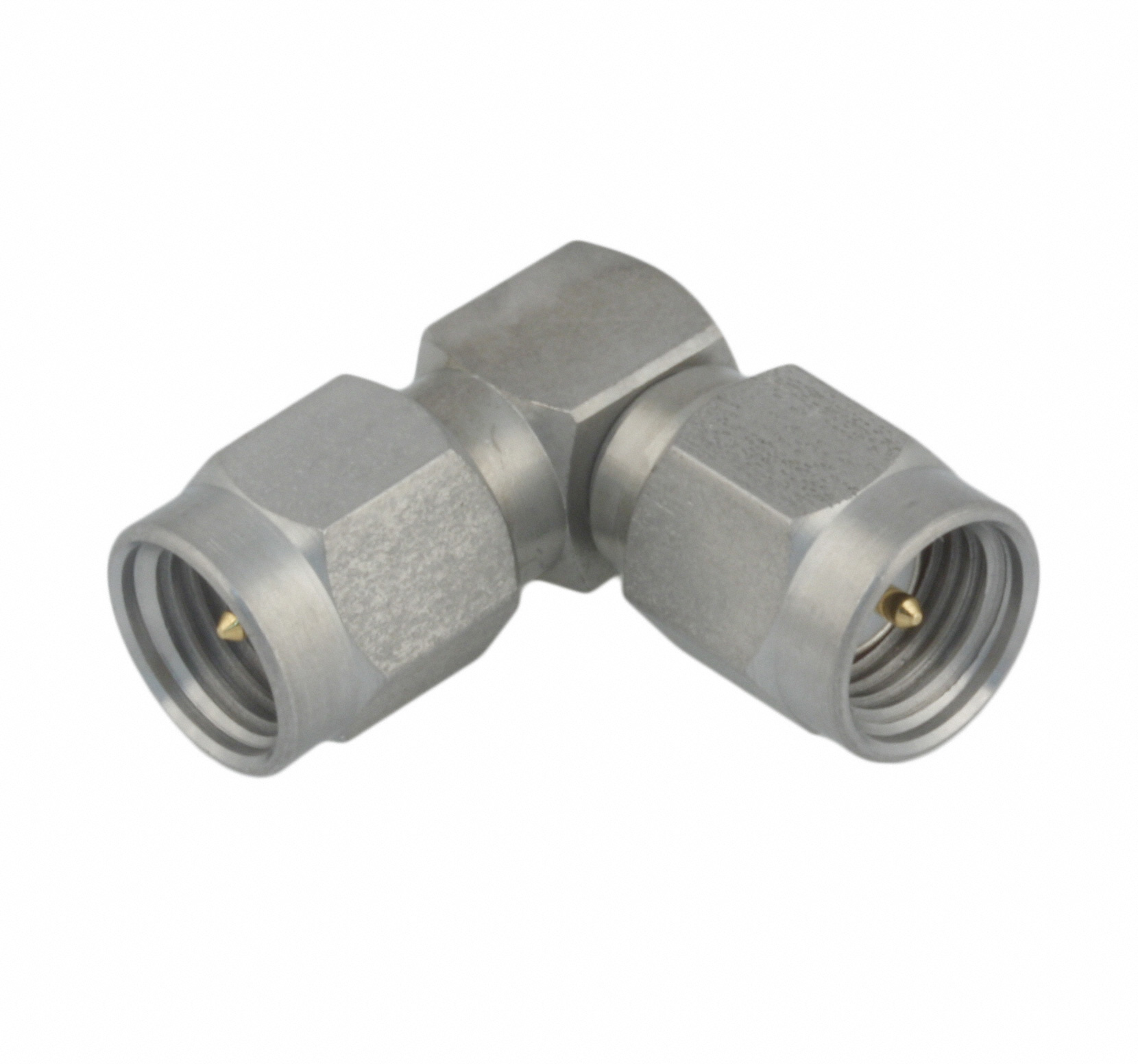

CONN ADAPT PLUG-PLUG OSM 50 OHM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT PLUG-PLUG OSM 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1055047-1

Adapter Series	OSM to OSM
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Style	Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN ADAPT PLUG-PLUG OSM 50 OHM

Part	Adapter Series	Body Material	Style	Mounting Type	Center Contact Material	Convert From (Adapter End)	Mating Cycles	Dielectric Material	Frequency - Max [Max]	Impedance	Adapter Type	Convert To (Adapter End)	Center Gender	Center Contact Plating	Conversion Type
TE Connectivity AMP Connectors 1055047-1	OSM to OSM	Stainless Steel	Right Angle	Free Hanging (In-Line), Right Angle	Beryllium Copper	SMA Plug, Male Pin	500	Polytetrafluoroethylene (PTFE)	18 GHz	50 Ohms	Plug to Plug	Male Pin, SMA Plug	Male to Male	Gold	Same Series

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
