1061928

Active

SICK, Inc.

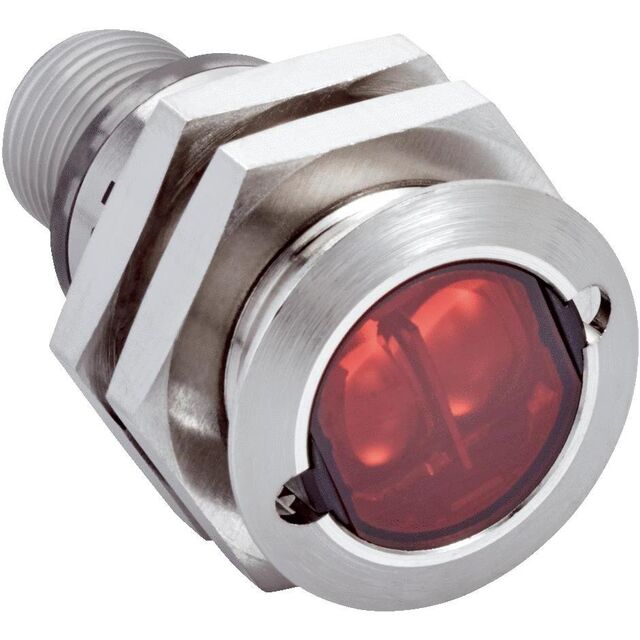

SENSOR RETROREFLECTIVE 7.2M NPN

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR RETROREFLECTIVE 7.2M NPN

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Light Source	Sensing Method	Connection Method	Response Time	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Cable Length	Cable Length
SICK, Inc. 1061928	283.465 "	7.2 m	30 mm	1.181 "	-25 °C	55 °C	NPN	RED (650nm)	Retroreflective	Connector M12	500 µs	IP67	30 VDC	10 VDC
SICK, Inc. 1068942	283.465 "	7.2 m	30 mm	1.181 "	-25 °C	55 °C	NPN	RED (650nm)	Retroreflective	Cable	500 µs	IP67	30 VDC	10 VDC	78.74 in	2 m
SICK, Inc. 1059556	283.465 "	7.2 m	30 mm	1.181 "	-25 °C	55 °C	PNP	RED (650nm)	Retroreflective	Connector M12	500 µs	IP67	30 VDC	10 VDC
SICK, Inc. 1062031	283.465 "	7.2 m	30 mm	1.181 "	-25 °C	55 °C	NPN	RED (650nm)	Retroreflective	Cable	500 µs	IP67	30 VDC	10 VDC	78.74 in	2 m
SICK, Inc. 1061927	283.465 "	7.2 m	30 mm	1.181 "	-25 °C	55 °C	NPN	RED (650nm)	Retroreflective	Connector M12	500 µs	IP67	30 VDC	10 VDC
SICK, Inc. GRL18SG-P1137	283.465 "	7.2 m	30 mm	1.181 "	-25 °C	55 °C	PNP	RED (650nm)	Retroreflective	Cable	500 µs	IP67	30 VDC	10 VDC	78.74 in	2 m
SICK, Inc. 1059557	283.465 "	7.2 m	30 mm	1.181 "	-25 °C	55 °C	PNP	RED (650nm)	Retroreflective	Connector M12	500 µs	IP67	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 136.96

General part information

Retroreflective Optical Sensor 1.181" ~ 283.465" (30mm ~ 7.2m) NPN

Technical documentation and resources
