16280-3PG-311
ActiveConxall/Switchcraft

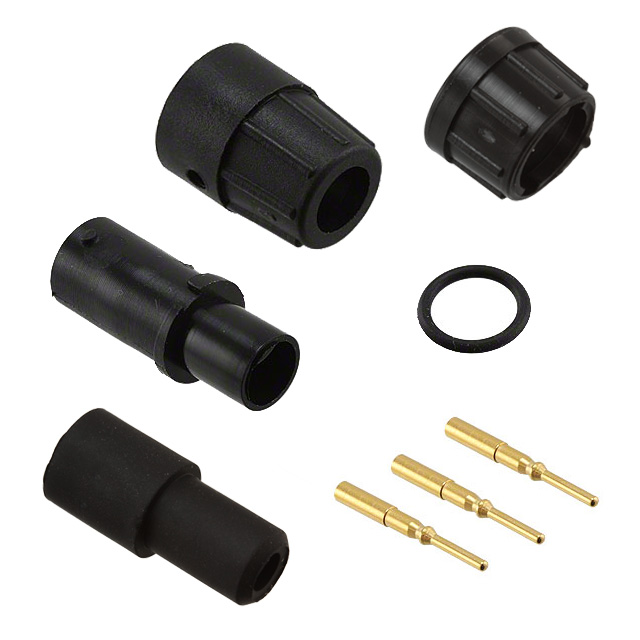

CONN PLUG MALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
16280-3PG-311
ActiveConxall/Switchcraft
CONN PLUG MALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 16280-3PG-311 | 16280-3P Series |
|---|---|---|
| Applications | Medical, Data, Instrumentation, Industrial | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening [diameter] | 2.29 mm | 2.29 mm |
| Cable Opening [diameter] | 0.14 in, 0.09 in | 0.09 - 0.14 in |
| Cable Opening [diameter] | 3.56 mm | 3.56 mm |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
16280-3P Series
CONN PLUG MALE 3POS GOLD CRIMP
| Part | Color | Shielding | Applications | Mounting Type | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Primary Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Orientation | Connector Type | Material Flammability Rating | Features | Current Rating (Amps) | Voltage Rating | Fastening Type | Backshell Material, Plating | Contact Finish - Mating | Ingress Protection | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 16280-3PG-311 | Black | Unshielded | Data, Industrial, Instrumentation, Medical | Free Hanging (In-Line) | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm | Plastic | Copper Alloy | 85 °C | -40 °C | Crimp | Keyed | Male Pins, Plug | UL94 HB | Backshell | 7.5 A | 600 VAC | Bayonet Lock | Thermoplastic | Gold | IP67 - Dust Tight, Waterproof | ||||||
Conxall/Switchcraft 16280-3PG-315 | Black | Unshielded | Data, Industrial, Instrumentation, Medical | Free Hanging (In-Line) | Plastic | Copper Alloy | 85 °C | -40 °C | Crimp | Keyed | Male Pins, Plug | UL94 HB | Backshell | 7.5 A | 600 VAC | Bayonet Lock | Thermoplastic | Gold | IP67 - Dust Tight, Waterproof | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | |||||||
Conxall/Switchcraft 16280-3PG-318 | Black | Unshielded | Data, Industrial, Instrumentation, Medical | Free Hanging (In-Line) | Plastic | Copper Alloy | 85 °C | -40 °C | Crimp | Keyed | Male Pins, Plug | UL94 HB | Backshell | 7.5 A | 600 VAC | Bayonet Lock | Thermoplastic | Gold | IP67 - Dust Tight, Waterproof | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm |
