1563 BL001

Active

ALPHA WIRE

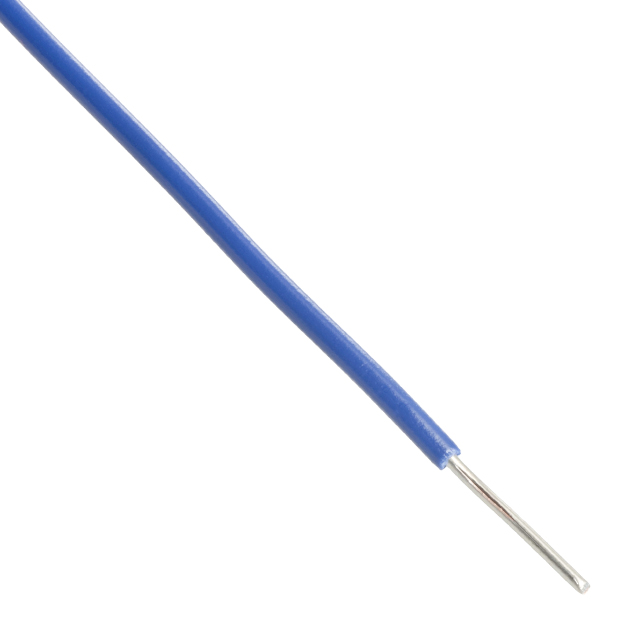

HOOK-UP SOLID 20AWG BLU 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog

1563 BL001

Active

ALPHA WIRE

HOOK-UP SOLID 20AWG BLU 1000'

Deep-Dive with AI

DocumentsHook-Up Wire Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 277.97
		2	$ 264.38
		3	$ 256.68
		5	$ 247.25
		7	$ 241.20
		10	$ 234.91
		25	$ 222.14

Description

General part information

1563 Series

20 AWG Hook-Up Wire Solid Blue 1000V 1000.0' (304.8m)

Documents

Technical documentation and resources

Hook-Up Wire Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1563 BL001	1563 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand	Solid	Solid
Jacket (Insulation) Diameter [diameter]	1.63 mm	1.63 mm
Jacket (Insulation) Diameter [diameter]	0.064 in	0.064 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in	0.016 in
Jacket (Insulation) Thickness	0.41 mm	0.41 mm
Jacket Color	Blue	Blue, Black, Orange, Slate, Brown, Green, Red, Yellow
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Qualification	MIL-W-76B Type MW	MIL-W-76B Type MW
Voltage	1000 V	1000 V
Wire Gauge	20 AWG	20 AWG

1563 Series

HOOK-UP SOLID 20AWG WHITE 1000'

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type	Length	Length	Qualification	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Strand	Jacket (Insulation) Material	Jacket Color	Length [x]	Length [x]
ALPHA WIRE 1563 WH001	0.016 in	0.41 mm	-40 °C	80 C	Copper, Tinned	Hook-Up	1000 ft	304.8 m	MIL-W-76B Type MW	1000 V	1.63 mm	0.064 in	20 AWG	Solid	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1563 BL001	0.016 in	0.41 mm	-40 °C	80 C	Copper, Tinned	Hook-Up	1000 ft	304.8 m	MIL-W-76B Type MW	1000 V	1.63 mm	0.064 in	20 AWG	Solid	Poly-Vinyl Chloride (PVC)	Blue
ALPHA WIRE 1563 BK005	0.016 in	0.41 mm	-40 °C	80 C	Copper, Tinned	Hook-Up			MIL-W-76B Type MW	1000 V	1.63 mm	0.064 in	20 AWG	Solid	Poly-Vinyl Chloride (PVC)	Black	30.5 m	100 ft
ALPHA WIRE 1563 OR001	0.016 in	0.41 mm	-40 °C	80 C	Copper, Tinned	Hook-Up	1000 ft	304.8 m	MIL-W-76B Type MW	1000 V	1.63 mm	0.064 in	20 AWG	Solid	Poly-Vinyl Chloride (PVC)	Orange
ALPHA WIRE 1563 SL001	0.016 in	0.41 mm	-40 °C	80 C	Copper, Tinned	Hook-Up	1000 ft	304.8 m	MIL-W-76B Type MW	1000 V	1.63 mm	0.064 in	20 AWG	Solid	Poly-Vinyl Chloride (PVC)	Slate
ALPHA WIRE 1563 BR001	0.016 in	0.41 mm	-40 °C	80 C	Copper, Tinned	Hook-Up	1000 ft	304.8 m	MIL-W-76B Type MW	1000 V	1.63 mm	0.064 in	20 AWG	Solid	Poly-Vinyl Chloride (PVC)	Brown
ALPHA WIRE 1563 BL005	0.016 in	0.41 mm	-40 °C	80 C	Copper, Tinned	Hook-Up			MIL-W-76B Type MW	1000 V	1.63 mm	0.064 in	20 AWG	Solid	Poly-Vinyl Chloride (PVC)	Blue	30.5 m	100 ft
ALPHA WIRE 1563 GR005	0.016 in	0.41 mm	-40 °C	80 C	Copper, Tinned	Hook-Up			MIL-W-76B Type MW	1000 V	1.63 mm	0.064 in	20 AWG	Solid	Poly-Vinyl Chloride (PVC)	Green	30.5 m	100 ft
ALPHA WIRE 1563 RD005	0.016 in	0.41 mm	-40 °C	80 C	Copper, Tinned	Hook-Up			MIL-W-76B Type MW	1000 V	1.63 mm	0.064 in	20 AWG	Solid	Poly-Vinyl Chloride (PVC)	Red	30.5 m	100 ft
ALPHA WIRE 1563 YL005	0.016 in	0.41 mm	-40 °C	80 C	Copper, Tinned	Hook-Up			MIL-W-76B Type MW	1000 V	1.63 mm	0.064 in	20 AWG	Solid	Poly-Vinyl Chloride (PVC)	Yellow	30.5 m	100 ft
