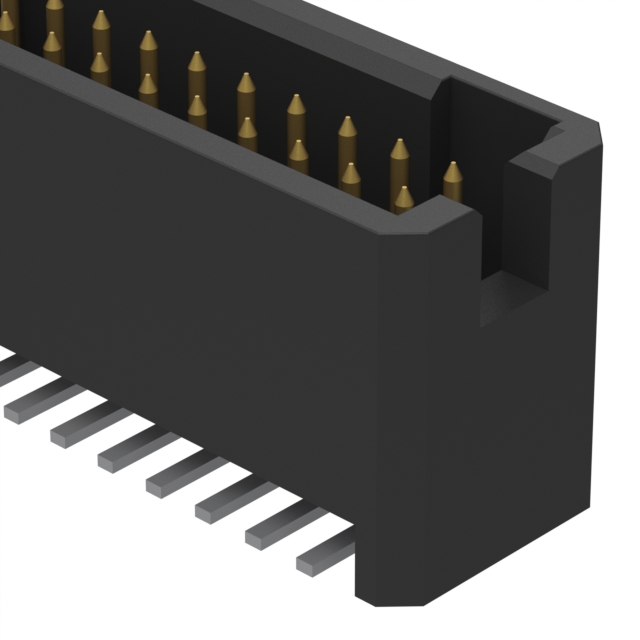

TFC-115-12-L-D-K

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

Search across all available documentation for this part.

TFC-115-12-L-D-K

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFC-115-12-L-D-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.139 in
Contact Length - Mating	3.53 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.296 in
Insulation Height	7.52 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	350 VAC, 275 VAC

TFC-115 Series

Headers & Wire Housings Tiger Eye Cost-Effective Terminal Strip, .050" Pitch

Part	Number of Positions Loaded	Features	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Fastening Type	Insulation Material	Number of Rows	Contact Material	Contact Finish - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Style	Number of Positions	Termination	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Material Flammability Rating	Contact Shape	Connector Type
Samtec Inc. TFC-115-12-L-D-K	All	Pick and Place	0.05 in	1.27 mm	275 VAC 350 VAC	Push-Pull	Liquid Crystal Polymer (LCP)	2	Phosphor Bronze	Gold	3.1 A	0.296 in	7.52 mm	10 çin	0.25 çm	Black	Board to Board Cable	30	Solder	0.05 in	1.27 mm	0.139 in	3.53 mm	Shrouded - 4 Wall	Male Pin	Surface Mount	-55 °C	125 °C	Tin	UL94 V-0	Square	Header
Samtec Inc. TFC-115-02-L-D-A-P-TR	All	Board Guide Pick and Place	0.05 in	1.27 mm	275 VAC	Push-Pull	Liquid Crystal Polymer (LCP)	2	Phosphor Bronze	Gold	3.1 A	0.226 in	5.74 mm	10 çin	0.25 çm	Black	Board to Board Cable	30	Solder	0.05 in	1.27 mm	0.131 in	3.33 mm	Shrouded - 4 Wall	Male Pin	Surface Mount	-55 °C	125 °C	Tin	UL94 V-0	Square	Header
Samtec Inc. TFC-115-02-L-D	All		0.05 in	1.27 mm	275 VAC	Push-Pull	Liquid Crystal Polymer (LCP)	2	Phosphor Bronze	Gold	3.1 A	0.226 in	5.74 mm	10 çin	0.25 çm	Black	Board to Board Cable	30	Solder	0.05 in	1.27 mm	0.131 in	3.33 mm	Shrouded - 4 Wall	Male Pin	Surface Mount	-55 °C	125 °C	Tin	UL94 V-0	Square	Header
Samtec Inc. TFC-115-32-L-D-A-K	All	Board Guide Pick and Place	0.05 in	1.27 mm	275 VAC	Push-Pull	Liquid Crystal Polymer (LCP)	2	Phosphor Bronze	Gold	3.1 A	0.441 "	11.2 mm	10 çin	0.25 çm	Black	Board to Board Cable	30	Solder	0.05 in	1.27 mm	0.139 in	3.53 mm	Shrouded - 4 Wall	Male Pin	Surface Mount	-55 °C	125 °C	Tin	UL94 V-0	Square	Header
Samtec Inc. TFC-115-12-F-D-A-K	All	Board Guide Pick and Place	0.05 in	1.27 mm	275 VAC	Push-Pull	Liquid Crystal Polymer (LCP)	2	Phosphor Bronze	Gold	3.1 A	0.296 in	7.52 mm	3 µin	0.076 µm	Black	Board to Board Cable	30	Solder	0.05 in	1.27 mm	0.139 in	3.53 mm	Shrouded - 4 Wall	Male Pin	Surface Mount	-55 °C	125 °C	Tin	UL94 V-0	Square	Header
Samtec Inc. TFC-115-22-L-D-A-P-TR	All	Board Guide Pick and Place	0.05 in	1.27 mm	275 VAC	Push-Pull	Liquid Crystal Polymer (LCP)	2	Phosphor Bronze	Gold	3.1 A	0.366 in	9.3 mm	10 çin	0.25 çm	Black	Board to Board Cable	30	Solder	0.05 in	1.27 mm	0.139 in	3.53 mm	Shrouded - 4 Wall	Male Pin	Surface Mount	-55 °C	125 °C	Tin	UL94 V-0	Square	Header
Samtec Inc. TFC-115-32-F-D-K-TR	All	Pick and Place	0.05 in	1.27 mm	275 VAC	Push-Pull	Liquid Crystal Polymer (LCP)	2	Phosphor Bronze	Gold	3.1 A	0.441 "	11.2 mm	3 µin	0.076 µm	Black	Board to Board Cable	30	Solder	0.05 in	1.27 mm	0.139 in	3.53 mm	Shrouded - 4 Wall	Male Pin	Surface Mount	-55 °C	125 °C	Tin	UL94 V-0	Square	Header
Samtec Inc. TFC-115-32-F-D-TR	All		0.05 in	1.27 mm	275 VAC	Push-Pull	Liquid Crystal Polymer (LCP)	2	Phosphor Bronze	Gold	3.1 A	0.441 "	11.2 mm	3 µin	0.076 µm	Black	Board to Board Cable	30	Solder	0.05 in	1.27 mm	0.139 in	3.53 mm	Shrouded - 4 Wall	Male Pin	Surface Mount	-55 °C	125 °C	Tin	UL94 V-0	Square	Header
Samtec Inc. TFC-115-22-L-D-TR	All		0.05 in	1.27 mm	275 VAC	Push-Pull	Liquid Crystal Polymer (LCP)	2	Phosphor Bronze	Gold	3.1 A	0.366 in	9.3 mm	10 çin	0.25 çm	Black	Board to Board Cable	30	Solder	0.05 in	1.27 mm	0.139 in	3.53 mm	Shrouded - 4 Wall	Male Pin	Surface Mount	-55 °C	125 °C	Tin	UL94 V-0	Square	Header
Samtec Inc. TFC-115-22-L-D-A	All	Board Guide	0.05 in	1.27 mm	350 VAC	Push-Pull	Liquid Crystal Polymer (LCP)	2	Phosphor Bronze	Gold	3.1 A	0.366 in	9.3 mm	10 çin	0.25 çm	Black	Board to Board Cable	30	Solder	0.05 in	1.27 mm	0.139 in	3.53 mm	Shrouded - 4 Wall	Male Pin	Surface Mount	-55 °C	125 °C	Tin	UL94 V-0	Square	Header

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.73
		25	$ 5.18

Description

General part information

TFC-115 Series

Headers & Wire Housings Tiger Eye Cost-Effective Terminal Strip, .050" Pitch

Documents

Technical documentation and resources

No documents available
