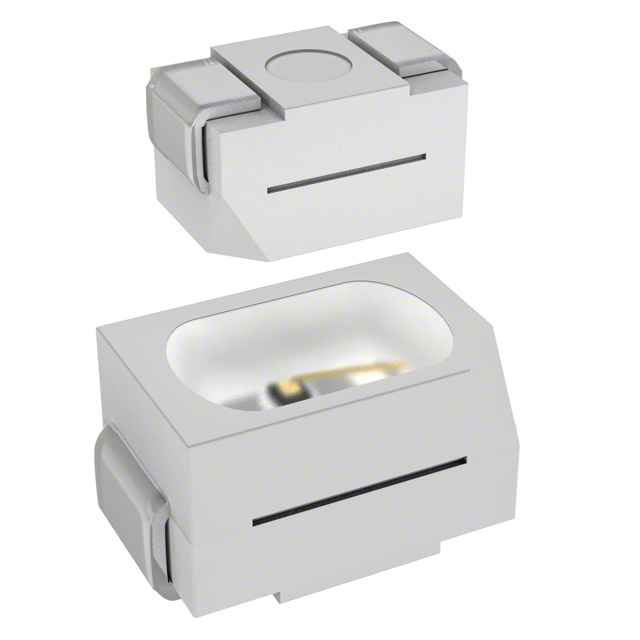

AA2214SES/J4

Active

Kingbright

LED ORANGE CLEAR SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AA2214SES/J4

Active

Kingbright

LED ORANGE CLEAR SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA2214SES/J4	AA2214 Series

Color	-	Green, Blue, Red, Yellow
Configuration	Standard	Independent, Standard
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	1.4 mm	1.4 mm
Lens Color	Colorless	Colorless
Lens Size [x]	1.65 mm	1.65 mm
Lens Size [y]	1.15 mm	1.15 mm
Lens Style	Oval with Flat Top	Oval with Flat Top
Lens Transparency	Clear	Clear
Millicandela Rating	700 mcd	70 - 1300 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	2-SMD, J-Lead	2-SMD, J-Lead
Supplier Device Package	SMD	SMD, 2-SMD
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	2.2 V	1.95 - 3.3 V
Wavelength - Dominant	605 nm	465 - 630 nm
Wavelength - Peak	611 nm	460 - 645 nm

AA2214 Series

LED GREEN CLEAR SMD

Part	Configuration	Supplier Device Package	Lens Color	Millicandela Rating	Color	Lens Size [x]	Lens Size [y]	Height (Max) [Max] [z]	Wavelength - Dominant	Mounting Type	Package / Case	Lens Transparency	Voltage - Forward (Vf) (Typ)	Lens Style	Current - Test	Viewing Angle	Wavelength - Peak
Kingbright AA2214CGSK	Independent	SMD	Colorless	70 mcd	Green	1.65 mm	1.15 mm	1.4 mm	570 nm	Surface Mount	2-SMD, J-Lead	Clear	2.1 V	Oval with Flat Top	20 mA	120 °
Kingbright AA2214SESK	Standard	SMD	Colorless	180 mcd		1.65 mm	1.15 mm	1.4 mm	601 nm	Surface Mount	2-SMD, J-Lead	Clear	2.1 V	Oval with Flat Top	20 mA	120 °	610 nm
Kingbright AA2214VRBXS/A-TR-AMT	Standard	SMD	Colorless	1300 mcd	Blue	1.65 mm	1.15 mm	1.4 mm		Surface Mount	2-SMD, J-Lead	Clear	3.3 V	Oval with Flat Top	20 mA	120 °
Kingbright AA2214SURSK	Standard	SMD	Colorless	100 mcd	Red	1.65 mm	1.15 mm	1.4 mm	630 nm	Surface Mount	2-SMD, J-Lead	Clear	1.95 V	Oval with Flat Top	20 mA	120 °	645 nm
Kingbright AA2214SYSK	Standard	SMD	Colorless	250 mcd	Yellow	1.65 mm	1.15 mm	1.4 mm	590 nm	Surface Mount	2-SMD, J-Lead	Clear	2 V	Oval with Flat Top	20 mA	120 °	590 nm
Kingbright AA2214ZGSK	Independent	2-SMD	Colorless	650 mcd	Green	1.65 mm	1.15 mm	1.4 mm	525 nm	Surface Mount	2-SMD, J-Lead	Clear	3.3 V	Oval with Flat Top	20 mA	120 °	515 nm
Kingbright AA2214SES/J4	Standard	SMD	Colorless	700 mcd		1.65 mm	1.15 mm	1.4 mm	605 nm	Surface Mount	2-SMD, J-Lead	Clear	2.2 V	Oval with Flat Top	20 mA	120 °	611 nm
Kingbright AA2214ZGS	Standard	SMD	Colorless	700 mcd	Green	1.65 mm	1.15 mm	1.4 mm	525 nm	Surface Mount	2-SMD, J-Lead	Clear	3.3 V	Oval with Flat Top	20 mA	120 °	515 nm
Kingbright AA2214QBS/D	Standard	SMD	Colorless	150 mcd	Blue	1.65 mm	1.15 mm	1.4 mm	465 nm	Surface Mount	2-SMD, J-Lead	Clear	3.3 V	Oval with Flat Top	20 mA	120 °	460 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.66
		10	$ 0.43
		100	$ 0.29
		1000	$ 0.22
	Digi-Reel®	1	$ 0.66
		10	$ 0.43
		100	$ 0.29
		1000	$ 0.22
	Tape & Reel (TR)	2000	$ 0.20
		6000	$ 0.19
		10000	$ 0.18
		50000	$ 0.17

Description

General part information

AA2214 Series

Orange 605nm LED Indication - Discrete 2.2V 2-SMD, J-Lead
