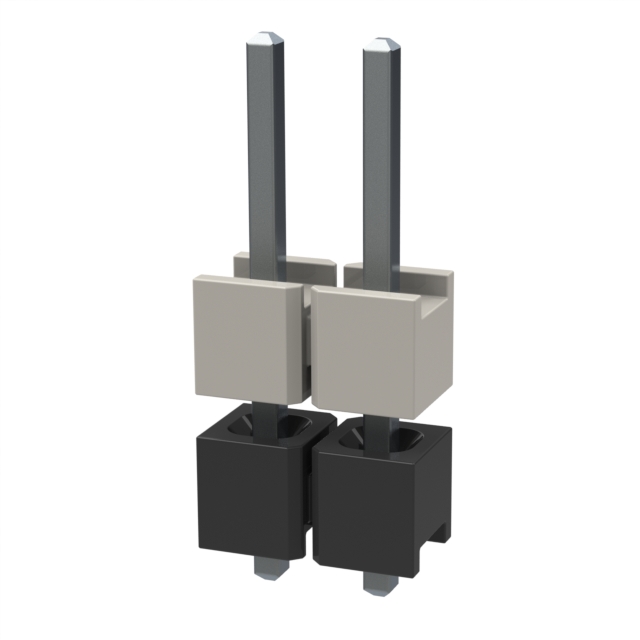

HW-02-07-T-S-200-075

Active

Samtec Inc.

CONN HDR 2POS 0.1 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 2POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Part	Length - Tail	Length - Tail	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Termination	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Contact Finish - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Tail [x]	Length - Tail [x]
Samtec Inc. HW-02-07-T-S-200-075	1.905 mm	0.075 in	2	1	2.54 mm	0.1 in	10.922 mm	0.43 in	Solder	Through Hole	0.155 in	3.937 mm	Black	Tin
Samtec Inc. HW-02-07-G-S-250-090			2	1	2.54 mm	0.1 in	10.922 mm	0.43 in	Solder	Through Hole	0.09 in	2.286 mm	Black	Gold	0.25 in	6.35 mm	0.25 Ám	10 Áin	2.286 mm	0.09 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.28

General part information

2 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
