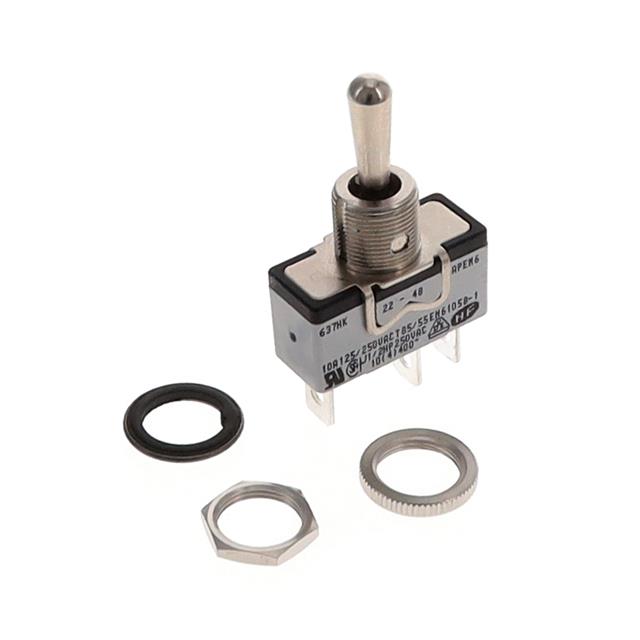

637H/2K

Active

APEM

SWITCH TOGGLE SPDT 10A 250V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE SPDT 10A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	637H/2K

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPDT
Current Rating (Amps)	10 A
Electrical Life	10000 Cycles
Features	Front Panel Sealing
Illumination	Non-Illuminated
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V

Part	Switch Function	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Actuator Type	Actuator Length [x]	Circuit	Features	Illumination	Electrical Life	Bushing Thread	Bushing Thread	Termination Style	Voltage Rating - AC
APEM 637H/2K	Mom-Off-Mom	12.2 mm	10 A	55 °C	-20 C	Brass Nickel Plated	Standard Round	17.5 mm	SPDT	Front Panel Sealing	Non-Illuminated	10000 Cycles	M12	0.75	Quick Connect - 0.250" (6.3mm)	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
