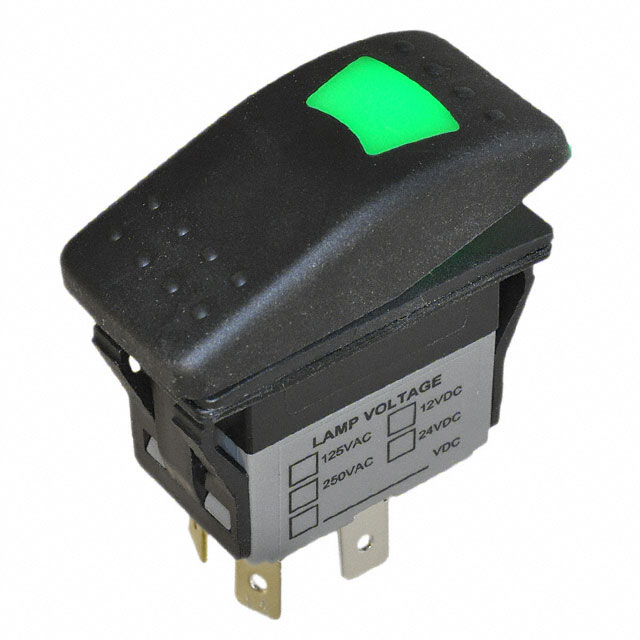

R711FE1-SXXX2BDGNW
ActiveE-Switch
ROCKER; SPST; POS: 2; ON-OFF; 16A/30VDC; BLACK; BLACK; LED; 12V
Deep-Dive with AI
Search across all available documentation for this part.
R711FE1-SXXX2BDGNW
ActiveE-Switch
ROCKER; SPST; POS: 2; ON-OFF; 16A/30VDC; BLACK; BLACK; LED; 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R711FE1-SXXX2BDGNW |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) - Illuminated |
| Approval Agency | cULus |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 37 mm |
| Panel Cutout Dimensions [y] | 21.1 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R711FE1 Series
Rocker Switch SPST 16A (DC) Panel Mount, Snap-In
