VES90PS19

Active

XP Power

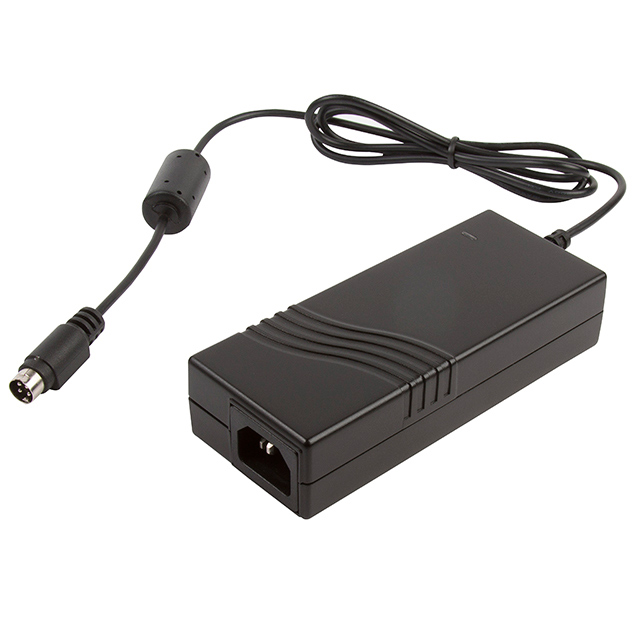

AC/DC DESKTOP ADAPTER 19V 90W

Search across all available documentation for this part.

Active

XP Power

AC/DC DESKTOP ADAPTER 19V 90W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VES90PS19	VES90 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB	CB
Cord Length	1.2 m	1.2 m
Cord Length	47.2 in	47.2 in
Current - Output (Max)	-	3.75 - 7.5 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Desktop (Class I)	Desktop (Class I)
Input Connector	IEC 320-C14	IEC 320-C14
Input Type	Cord	Cord
No Load Power Consumption [Max]	150 mW	150 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	4 Pin	4 Pin
Output Connector	Power DIN	Power DIN
Power (Watts)	90 W	90 W
Region Utilized	International	International
Size / Dimension [x]	5.47 in	5.47 in
Size / Dimension [x]	139 mm	139 mm
Size / Dimension [y]	2.28 in	2.28 in
Size / Dimension [y]	58 mm	58 mm
Size / Dimension [z]	31 mm	31 mm
Size / Dimension [z]	1.22 in	1.22 in
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	19 V	12 - 24 V
Weight	0.82 lb	0.82 lb
Weight	371.95 g	371.95 g

AC/DC DESKTOP ADAPTER 12V 90W

Part	Approval Agency	Output Connector	Output Connector	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Region Utilized	Efficiency	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Form	Applications	Voltage - Output	Power (Watts)	No Load Power Consumption [Max]	Current - Output (Max) [Max]	Input Connector	Weight	Weight	Standard Number	Input Type
XP Power VES90PS12	CB	4 Pin	Power DIN	1.2 m	47.2 in	2.28 in	5.47 in	58 mm	31 mm	139 mm	1.22 in	International	CoC Tier 2, Level VI	60 °C	90 VAC	264 VAC	Desktop (Class I)	ITE (Commercial)	12 V	90 W	150 mW	7.5 A	IEC 320-C14	0.82 lb	371.95 g	62368-1	Cord
XP Power VES90PS19	CB	4 Pin	Power DIN	1.2 m	47.2 in	2.28 in	5.47 in	58 mm	31 mm	139 mm	1.22 in	International	CoC Tier 2, Level VI	60 °C	90 VAC	264 VAC	Desktop (Class I)	ITE (Commercial)	19 V	90 W	150 mW		IEC 320-C14	0.82 lb	371.95 g	62368-1	Cord
XP Power VES90PS24	CB	4 Pin	Power DIN	1.2 m	47.2 in	2.28 in	5.47 in	58 mm	31 mm	139 mm	1.22 in	International	CoC Tier 2, Level VI	60 °C	90 VAC	264 VAC	Desktop (Class I)	ITE (Commercial)	24 V	90 W	150 mW	3.75 A	IEC 320-C14	0.82 lb	371.95 g	62368-1	Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 49.05

General part information

19V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
