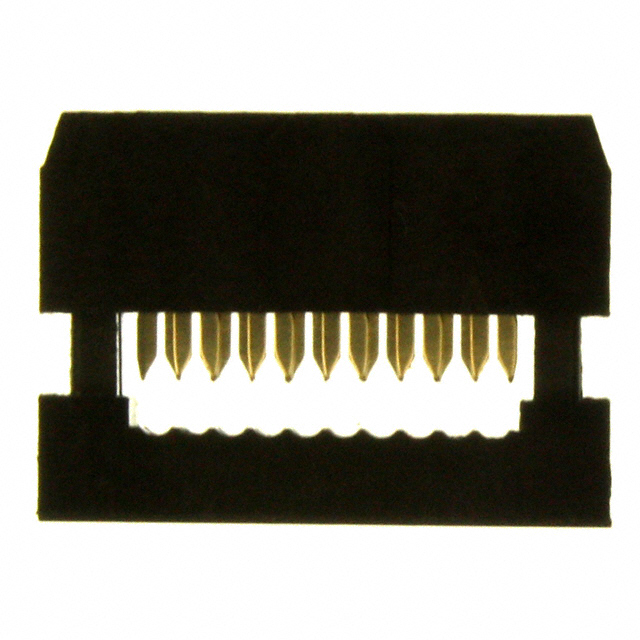

SFH213-PPPN-D05-ID-BK

Active

Sullins Connector Solutions

CONN HEADER 10POS IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

SFH213-PPPN-D05-ID-BK

Active

Sullins Connector Solutions

CONN HEADER 10POS IDC GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFH213-PPPN-D05-ID-BK

Cable Termination	IDC
Color	Black
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Type	Ribbon Cable

SFH213 Series

...

Part	Connector Type	Contact Finish	Contact Finish Thickness	Number of Rows	Features	Wire Gauge	Pitch [x]	Pitch [x]	Number of Positions	Contact Type	Wire Type	Cable Termination	Mounting Type	Row Spacing [x]	Row Spacing	Color	Row Spacing	Contact Finish Thickness	Contact Finish Thickness
Sullins Connector Solutions SFH213-PPVC-D17-ID-BK	Header	Gold	Flash	2	Feed Through Polarizing Key Strain Relief	28 AWG	2.54 mm	0.1 in	34	Female Socket	Ribbon Cable	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
Sullins Connector Solutions SFH213-PPVN-D10-ID-BK-M181	Header	Gold	Flash	2	Feed Through Strain Relief		2 mm	0.079 in	20	Female Socket	Ribbon Cable	IDC	Free Hanging (In-Line)		2 mm	Black	0.079 in
Sullins Connector Solutions SFH213-PPPN-D06-ID-BK	Header	Gold	Flash	2	Feed Through Polarizing Key Strain Relief		2 mm	0.079 in	12	Female Socket	Ribbon Cable	IDC	Free Hanging (In-Line)		2 mm	Black	0.079 in
Sullins Connector Solutions SFH213-PPPN-D05-ID-BK	Header	Gold	Flash	2	Feed Through Polarizing Key Strain Relief		2 mm	0.079 in	10	Female Socket	Ribbon Cable	IDC	Free Hanging (In-Line)		2 mm	Black	0.079 in
Sullins Connector Solutions SFH213-PPVN-D05-ID-BK	Header	Gold	Flash	2	Feed Through Polarizing Key Strain Relief		2 mm	0.079 in	10	Female Socket	Ribbon Cable	IDC	Free Hanging (In-Line)		2 mm	Black	0.079 in
Sullins Connector Solutions SFH213-PPVC-D13-ID-BK	Header	Gold	Flash	2	Feed Through Polarizing Key Strain Relief	28 AWG	2.54 mm	0.1 in	26	Female Socket	Ribbon Cable	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
Sullins Connector Solutions SFH213-PPVC-D03-ID-BK	Header	Gold	Flash	2	Feed Through Polarizing Key Strain Relief	28 AWG	2.54 mm	0.1 in	6	Female Socket	Ribbon Cable	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
Sullins Connector Solutions SFH213-PPVC-D25-ID-BK-M181	Header	Gold	Flash	2	Feed Through Strain Relief	28 AWG	2.54 mm	0.1 in	50	Female Socket	Ribbon Cable	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Black
Sullins Connector Solutions SFH213-PPJC-D06-ID-BK	Header	Gold		2	Feed Through Polarizing Key Strain Relief	28 AWG	2.54 mm	0.1 in	12	Female Socket	Ribbon Cable	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Black		15 µin	0.38 µm
Sullins Connector Solutions SFH213-PPVC-D04-ID-BK	Header	Gold	Flash	2	Feed Through Polarizing Key Strain Relief	28 AWG	2.54 mm	0.1 in	8	Female Socket	Ribbon Cable	IDC	Free Hanging (In-Line)	0.1 in	2.54 mm	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.13
		10	$ 0.95
		80	$ 0.86
		440	$ 0.70
		1000	$ 0.62
		5000	$ 0.56

Description

General part information

SFH213 Series

10 Position Rectangular Header Connector IDC Gold

Documents

Technical documentation and resources

No documents available
